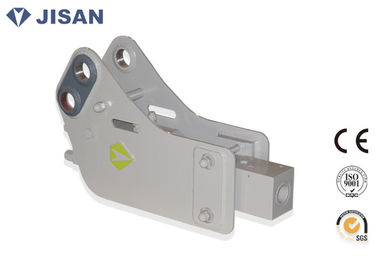

JCB Excavator Rock Breaker Well Heat Treatment Backhoe Loader Type Breaker

JCB Excavator Rock Breaker Well Heat Treatment Backhoe Loader Type Breaker
JCB Excavator Rock Breaker Well Heat Treatment Backhoe Loader Type Breaker JCB Excavator Rock Breaker Well Heat Treatment Backhoe Loader Type Breaker

Large Image :  JCB Excavator Rock Breaker Well Heat Treatment Backhoe Loader Type Breaker

Product Details:
Place of Origin: China
Brand Name: JISAN
Certification: CE, ISO
Model Number: JSB400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation ( EXW , FOB or CIF price )
Packaging Details: Export Wooden Cases or pallets
Delivery Time: 7-10 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Sets per year
Detailed Product Description
Suit For: Backhoe Loader, Skid Steer Loader, Excavator Heat Treatment: Main Parts All Treated By Lastest Heat Treatmnet Equipments
Certification: CE, ISO Weight: 300 Kg
OEM: OEM Service Available Hose Diameter: 1/2 Inch
High Light:

excavator hydraulic breaker

,

excavator hydraulic hammer

JCB Excavator Rock Breaker Well Heat Treatment Backhoe Loader Type Breaker





Features



1. Piston, cylinder, front part of the main body, and other main parts of main body are all treated by lastest heat treatmnet equipments. Years of technical heat treatment experience ensures the quality and stability of JISAN breaker.

2. Selected raw material – high quality heavy duty wear resistant steel

3. Hydraulic-gas system, increase stability
4. Advanced manufacturing facilities, introduced from Korea
5. High energy and impact frequency (high performance)
6. High-performance optimized hydraulic unit
7. Low maintenance, less breakdown, long using life
8. Fully enclosed housing with robust structure

9. Compatible with all kinds of excavators such as Doosan, Dawoo, Volvo, Hitachi, Kato, Kobelco,Komatsu, Sumitao, Liebheer, Hyundai, Cat, Jonyong, Changjiang, Liugong, Yuchai, Case, John Deer and backhoe

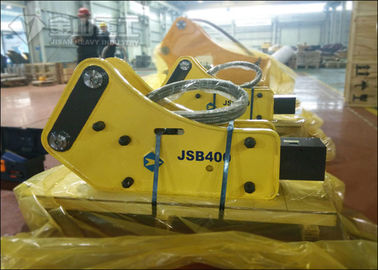

JCB Excavator Rock Breaker Well Heat Treatment Backhoe Loader Type Breaker 0





Application



Excavator rock breaker can be widely used to breaking rock, paving road, building demolition,mining,dismantling engineering and special engineering etc.



JCB Excavator Rock Breaker Well Heat Treatment Backhoe Loader Type Breaker 1





Specification



Model Unit JSB200 JSB300 JSB400 JSB600 JSB800 JSB900 JSB1600
Weight Kg 200 270 330 450 680 1000 2000
Length Mm 1344 1420 1590 1895 2101 2401 2822
Pressure Kg/m² 80-110 90-120 110-140 120-150 130-160 150-170 160-180
Flow L/Min 20-30 25-50 40-70 50-90 60-100 80-110 100-150
Rate Bpm 600-1200 550-1000 500-900 400-800 400-800 350-700 350-600
Hose Inch 1/2 1/2 1/2 1/2 3/4 3/4 1
Chisel Mm 45 53 68/70 75 85 100 135
Suit Ton 0.8-3.0 1.0-3.5 4-7 6-9 7-14 11-16 16-21



Model Unit JSB1900 JSB2800 JSB3500 JSB4500 JSB5000 JSB5500 JSB6500
Weight Kg 2050 2800 3100 3950 4200 4900 7100
Length Mm 2828 3052 3254 3450 3709 3800 4430
Pressure Kg/m² 160-180 160-180 160-180 160-180 160-180 160-180 190-210
Flow L/Min 120-180 150-210 180-240 200-260 210-290 250-310 290-370
Rate Bpm 350-500 300-450 300-450 250-400 200-350 250-320 200-400
Hose Inch 1 1 1.25 1.25 1.25 1.25 1.25
Chisel Mm 140 150 155 165 175 180 210
Suit Ton 18-26 25-30 28-45 30-45 40-55 44-70 65-100





FAQ



1. Are you a manufacture?
    Yes,our factory was established in 2009.



2. What’s the MOQ and payment ?
    MOQ is 1 set.
    T/T, L/C,west union is accepted. Other terms can also be negotiated.



3. How long is your delivery time?
     Generally it is 3-5 days if the goods are in stock.
     It is 7-15 days if the goods are not in stock, and it's according to quantity.



4. Can you produce according to customers' design?
    Sure,we are professional manufacturer,OEM is available.
