Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier

Certification
China JISAN HEAVY INDUSTRY LTD certification
China JISAN HEAVY INDUSTRY LTD certification
I'm Online Chat Now

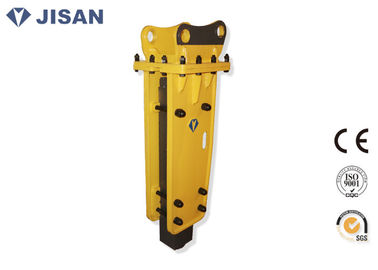

Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier

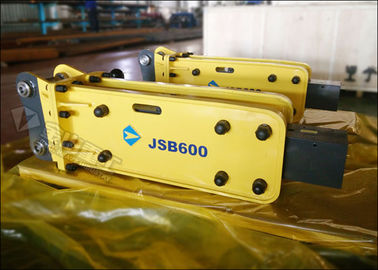

Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier

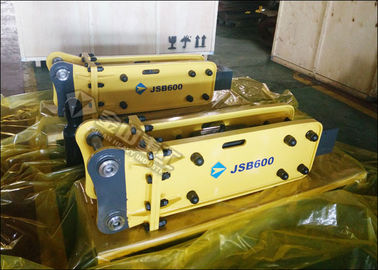

Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier

Large Image :  Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier

Product Details:
Place of Origin: China
Brand Name: JISAN
Certification: CE, ISO
Model Number: JSB600T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation ( EXW , FOB or CIF price )
Packaging Details: Export Wooden Cases or pallets
Delivery Time: 3-5 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Sets per year
Detailed Product Description
Rod Diameter: 75mm Chisel Carrier: 4-7 Ton Small Excavator
Weight: 420kg OEM: OEM Service Available
Series: Soosan Series Hydraulic Breaker Warranty: 14 Months
High Light:

excavator hydraulic hammer

,

excavator concrete breaker

Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier

jisan hydraulic breaker 2022.pdf



Description



1. High Strength and wear resistance steel plate adopted for main parts.

2. Compatible with various brands of excavator and backhoe loader.

3. Well heat treatment for through bolt and cylinder, protecting hydraulic breaker from fracture damage.

4. Unique valve system. JISAN hydraulic breakers adopt simple hydraulic circuit system, which reduce oil consumption and improve working efficiency.

5. First-class quality. Introduce processing equipments and main body producer technician from Korean to guarantee the quality.

6. Powerful stroke. Compared with other brand's products, JISAN breaker has more powerful stroke and reliable performance.



Product Paramenters
Item/Model
weight
(kg)
length
(mm)
pressure
(bar)
flow
(lpm)
rate
(bmp)
hose
(inch)
chisel
(mm)
suit(ton)
JSB100
100
1000
90-120
15-25
900-1400
1/2
40
0.8-2.0
JSB200
167
1300
90-120
20-40
700-1200
1/2
45
1.2-3.0
JSB300
194
1400
90-120
25-50
600-1100
1/2
53
2.5-4.5
JSB400
363
1700
110-140
40-70
500-900
1/2
68/70
4-7
JSB600
450
1750
110-160
50-90
500-800
1/2
75
6-9
JSB800
730
2100
120-170
60-100
400-700
3/4
85
7-14
JSB900
970
2400
150-170
80-120
400-700
3/4
100
11-16
JSB1600
1950
2700
160-180
120-160
400-700
1
135
19-26
JSB1900
2050
2860
160-180
130-170
400-600
1
140
19-26
JSB3500
3000
3100
160-180
170-220
250-400
1
155
28-40
JSB4500
3300
3286
160-180
200-300
250-350
1 ¼
165
36-45
JSB5000
4250
3800
160-180
210-290
200-350
1 ¼
175
40-55
JSB5000
4900
3700
180-220
220-300
200-250
1 ¼
185
50-60
JSB6000
5400
4200
200-240
230-320
150-200
1 ¼
195
55-65
JSB6500
7400
4300
200-240
320-490
150-200
1 ¼
205
65-100
Feature Details
Excavator hydraulic breaker is one of the new front-end equipment accessories of excavator, which is widely used. Excavator hydraulic breaker has the characteristics of high strength, high power, small size and humanized product. Because the excavator hydraulic breaker can quickly and effectively break concrete, mining, boulder breaking, bridge repair, earthquake rescue and other disasters, rescue trapped people, and play a role in rescue and disaster relief. Therefore, it is often used for demolition and rescue in various places, and is a commonly used crushing tool for fire brigade, traffic police, industrial and mining enterprises and other disaster relief and construction departments. It can also be used in construction demolition operations, reinforced concrete separation and other conditions. They have a wide range of applications such as demolition, deconstruction, primary rock excavation, secondary rock breaking, trenching, foundation works, asphalt cutting, etc. Our excavator hydraulic hammers are suitable for any type of carrier, with operating weights ranging from 50kg to over 10,000kg. The over-development of breakers has given rise to different levels of advancement, such as self-lubricating systems, sound and vibration damping systems, automatic rock hardness adjustment systems, energy recovery, solid concepts, and more.
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 3
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 4
Precautions for safe operation.
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 5
1.Proper position must be applied for an effective usage of breaking force. When position is incorrect,hammering energy of the piston is too weak to break rocks,
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 6
2.On the contrary,when position is excessive enough to break rocks with front of the base machine raised, the machine may suddenly tit forward the moment rocks are broken. Then, the breaker body or the end ofbracket may violently hit against rocks and result in damage.
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 7
3.lt is undesirable to carry out hammering under the below condition, because vibrations during hammering may be transmitted to tracks of the base machine. During hammering,however,proper position must be always applied to the breaker.Special care must be taken not to hammer under abnormal condition.
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 8
4.Apply same direction of boom force in line with the rod and place the rod in the rock with hammering surface as vertical as possible. lf hammering surface is oblique,the rod may slip during hammering. Thiscauses the rod to seize and to be broken and piston to be damaged. When breaking,fully stabilize therod first and then select the point of a rock on which hammering can be performed in a stable condition.
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 9
5.Do not use the breaker rod to move rocks. The stone claws are designed for this purposes.
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 10
6.Do not use the breaker to sweep the ground of debris. This may damage the breaker and the housing will wear out more quickly.
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 11
7.Do not operate breaker when all components except rod are immersed in water and mud. Underwater usage of the breaker will cause internal damage to the breaker. Consult jisan for modifications if you have an underwater requirement.
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 12
8.Do not allow the breaker to fall to a rock. Falling down the breaker will apply excessive force to the breaker or the carrier,causing damage to theparts of the breaker and carrier.
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 13
9.Do not operate the breaker with the carriers boom,stick or bucket cylinders at the end of their stroke (either fully extended or fully retracted). Damage to the carrier may result
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 14
10.Do not use the breaker or breaker rods for lifting. Lifting eyes on the breaker are for storage and maintenance purposes only.
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 15
11.Warm-up of machine prior to operation - Do not operate the machine right after starting the engine.ldle the machine for warm-up. Warm thehydraulic oil sufficiently especially in winter or in the cold place. - Especially in winter,the carrier's engine should be warmed up for 5 to 10 minutes 30~4O℃(86~105'F)before breaker operation. - When operating the hydraulic breaker,idle the engine and operate the hydraulic breaker with a light load.
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 15
12.Stop operation when hoses are vibrating abnormally. Check the hoses on the high pressure and low pressure sides of the breaker for abnormal vibration.lfthey are vibrating abnormally,contact the nearest jisan dealer.
13. Avoid blank hammering. Blank hammering accelerates wear and tear on breaker and carrier components and may result in failureof one or more components.Excessive blank hammering may be considered equipment abuse and mayresult in voiding warranties. In case of blank hammering,hammering sound changes.
14.Operate the breaker at proper engine speed. Break rocks at the specified engine speed. Raising engine speed more than necessary does notstrengthen hammering force but increase oil temperature to the detriment of piston and valve.
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 17
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 18
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 19
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 20
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 21
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 22
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 23
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 24
Our Advantages

1.JISAN HEAVY INDUSTRY LTD. is one of the largest and most professional hydraulic breaker manufacturers with 12 years experience,
specialized in R&D and manufacture of JISAN Series Hydraulic Breaker.
2.Our products have been exported to many countries in the world including India, Saudi Arabia, South America, Australia,
New Zealand, Southeast Asia, USA, Europe, and South Africa etc.
3.Main Advantages of JISAN Hydraulic Breaker:
1.JISAN HEAVY INDUSTRY LTD. is one of the largest and most professional hydraulic breaker manufacturers with 11 years experience,
specialized in R&D and manufacture of JISAN Series Hydraulic Breaker.
2.Our products have been exported to many countries in the world including India, Saudi Arabia, South America, Australia,
New Zealand, Southeast Asia, USA, Europe, and South Africa etc.
3.Main Advantages of JISAN Hydraulic Breaker:
Korea made cylinder;
NOK oil seal, Oil seal durability design;
Low noisy. Full-closed housing to protect the main body;
Strong impact;
Longer lifetime of usage;
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 25
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 26
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 27
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 28
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 29
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 30
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 31
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 32
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 33
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 34
Applications
Product packaging
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 39
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 40
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 41
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 42
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 43
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 44
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 45
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 46
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 47
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 48
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 49
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 50
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 51
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 52
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 53
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 54
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 55
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 56
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 57
Exhibition
JISAN winned well recognition by clients from different countries on exhibition.

Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 58

Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 59

Certifications
Various patent certificates
Korean Soosan Series Excavator Rock Breaker For Hitachi EX120 EX130 Carrier 60



Package

1. The standard free spare parts delivered with hydraulic breaker including: two pieces of Chisel, two pieces of high pressure oil hoses, a set of nitrogen charging device includes a gas bottle and a pressure gauge , a set of repair tools contained in tool box.



2. Inner is stretch film, outside is export wooden case or as customer’s request



Delivery



1. Delivery time: Usually 3-7days (1-5sets) after down payment.

2. We can arrange ocean or air transportation according to your request from any port of China.
