Small Stone Hydraulic Plate Compactor , Hydraulic Compactors For Excavators IHI

China Small Stone Hydraulic Plate Compactor , Hydraulic Compactors For Excavators IHI supplier

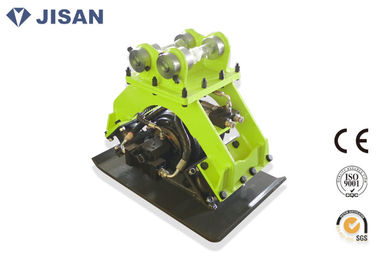

Large Image :  Small Stone Hydraulic Plate Compactor , Hydraulic Compactors For Excavators IHI

Product Details:

Place of Origin: China
Brand Name: JISAN
Certification: CE, ISO
Model Number: JSC02

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiation ( EXW , FOB or CIF price )
Packaging Details: Export Wooden Cases or Pallets
Delivery Time: 3-5 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Sets per year
Contact Now
Detailed Product Description
Dimension(L*W*H): 1350mm*900mm*1060mm Application: Construction, Streets With Slope, Dam Slope, Retaining Structure And Drainage Ditch
Motor: US Imported Motor Color: Green Or As Request
Weight: 900 Kg Main Material: Q345B, NM400 High Strength Steel



Small Stone Hydraulic Plate Compactor Vibratory Rammer For IHI Excavator





The plate compactor allows you to compact in the trenches without leaving the comfort of the cab.
Applicable to any position, such as horizon compaction, step compaction, bridge abutment , the trench pit compaction, sub grade compaction, the corner turning point, backfill compacted, concrete pavement patching compacted, tube side compaction etc. JISAN hydraulic compactor can also be used for pulling piles and broken when necessary.





Product Features



1. import sweden bearing, long durability with lower noise
2. Specially designed 45 degree inclined vibration-proof rubber absorbs and minimizes shock power
3. No pressure adjustment due to a high pressure generating motor
4. import American pike hydraulic vibrating motor, more efficient and reliable
5. Can be customized according to different working site



Small Stone Hydraulic Plate Compactor , Hydraulic Compactors For Excavators IHI





Parameter



Item/Model Unit JSC02 JSC03 JSC06 JSC08 JSC10
Carrier Ton 1-3 4-9 11-16 17-23 23-30
Power of Impulse Ton 3 5 10 15 15
Maximum vibration frequency Rpm 2000 2000 2000 2000 2000
Oil Flow L/min 30-45 45-75 85-105 120-170 120-170
Pressure Kg/cm2 100-120 100-130 100-130 150-200 150-200
Weight Kg 260 300 500 900 950
Bottom Measurement L*W*T,mm 650*470*16 900*550*25 1160*700*28 1350*900*30 1350*900*30
Height Mm 690 760 920 1060 1100
Width Mm 470 550 700 900 900





Application



Hydraulic compactor can fit for various kinds of excavators and skid loader varying from KOMATSU, CAT, HITACHI, KATO, DOOSAN, DAEWOO, JCB, OKB, NPK, MKB, LIUGONG, XCMG, LIEBHERR, HYUNDAI, SUMITOMO, KOBELCO, YANMAR, KUBOTA, IHISCE, TAKEUCHI etc.



The plate compactor enables compacting even in hard to reach areas like down in the trenches and on slopes. Shock mounts distribute vibration evenly while keeping the attachment level, increasing stability and improving compaction efficiency.



Small Stone Hydraulic Plate Compactor , Hydraulic Compactors For Excavators IHI





FAQ



1. Are you sure that your product will fit my excavator?
    Our plate compactor can be adapted to different excavators. Show me your model number, and we can give you best solution.

2. How about the delivery time ?
    Within 10 working days after receiving T/T payment.

3. What color can you produce ?
    Green ,If you prefer other color, please advise.
