Coupling Attachment Excavator Quick Coupler , Durable Quick Couplers For CAT320 EC210 EC240 SK200

China Coupling Attachment  Excavator Quick Coupler ,  Durable Quick Couplers For CAT320 EC210 EC240 SK200 supplier
Coupling Attachment  Excavator Quick Coupler ,  Durable Quick Couplers For CAT320 EC210 EC240 SK200 supplier Coupling Attachment  Excavator Quick Coupler ,  Durable Quick Couplers For CAT320 EC210 EC240 SK200 supplier

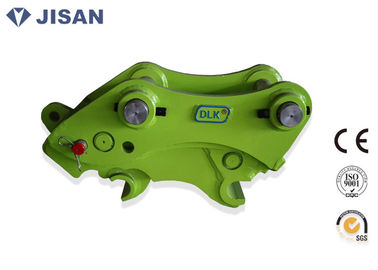

Large Image :  Coupling Attachment Excavator Quick Coupler , Durable Quick Couplers For CAT320 EC210 EC240 SK200

Product Details:

Place of Origin: China
Brand Name: JISAN
Certification: CE, ISO
Model Number: JS80

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation ( EXW , FOB or CIF price )
Packaging Details: Export Wooden Cases or pallets
Delivery Time: 5-8 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 Sets per year
Contact Now
Detailed Product Description
Pin Diameter: 90-120 Mm Warranty: 14 Months
Color: Green Or As Request Material: Q345B Steel
Pin To Pin Center Distance: 550-620 Mm Carrier: 33-45 Ton All Brands Excavator



Coupling Attachment Hydraulic Quick Hitch For Excavator CAT320 EC210 EC240 SK200




Versatility


The diversity design can enable one coupler for multiple brand of equipments within the same excavator weight class, meanwhile, the versatility also make sure picking up the widest range of attachments such as buckets, rippers, especially strong in demolition attachments such as hammers, crushers, shears by making the advantage from both free type and fixed type.



Coupling Attachment  Excavator Quick Coupler ,  Durable Quick Couplers For CAT320 EC210 EC240 SK200




Features

Convenient and Efficient


DLK quick hitch can be used on excavator to exchange accessories (such as breaker, ripper, compactor, grapple, shear, etc) easily and quickly, enlarging the use scope of excavator. Installing one quick hitch to
the excavator takes only 1 minute, enhancing the working efficiency of excavator.


Double Safety System


Check valve Protection System: each cylinder installed safety check valve ensures that quick hitch coupler can work when the circuit and oil circuit is cut off.
Safety Pin Protection System: security protection is customized for each excavator according to the different measurement. In the case of the failure of cylinder, quick hitch can work regularly.

Coupling Attachment  Excavator Quick Coupler ,  Durable Quick Couplers For CAT320 EC210 EC240 SK200


Parameter



Model Unit JSMINI JS45 JS50 JS55 JS60 JS65 JS70 JS80 JS90 JS100 JS110
Overall Length Mm 388 534-545 600 765 924-944 983-1050 1006-1173
Overall Height Mm 246 307 310 388 492 574 558-610
Overall Width Mm 175 258-263 270-280 353-436 449-483 543-568 606-663
Pin to Pin Center Distance Mm 80-150 230-270 290-360 380-420 460-480 473-540 550-620
Forearm Open Width Mm 80-140 155-170 180-200 232-315 306-340 375-411 416-469
Retractable Distance of oil cylinder Mm 170-206 205-275 340-450 340-486 256-390 413-590 520-590
Top to Bottom Pin Distance Mm 159 195 195 220 275 300 360
Pin Diameter Mm 25-40 45-50 50-55 60-70 70-80 80-90 90-120
Weight Kg 25 50-60 80 120-130 280-290 420-430 450-580
Working Pressure Kg/c㎡ 40-380 40-380 40-380 40-380 40-380 40-380 40-380
Required Oil Flow L/min 10-20 10-20 10-20 10-20 10-20 10-20 10-20
Suitable Excavator Ton 1.5-4 4-7 5-8 9-19 17-23 23-30 33-45


Coupling Attachment  Excavator Quick Coupler ,  Durable Quick Couplers For CAT320 EC210 EC240 SK200


Packing & Shipping

Package: Inner is stretch film, outside is export wooden case

Production Time: 3-5 Workdays after down payment

Delivery: We can arrange ocean or air transportation according to your request from any port of China.

Shipping term: EXW,FOB, CNF, CIF, DDU, DDP
Shipping port: Qingdao,Tianjin, Shanghai, Ningbo, etc.


Company Introduction

Jisan Heavy Industry Ltd. is a leading manufacturer of hydraulic breaker and attachments, widely used in the construction, demolition, mining industries and special project. At present, the capacities of research and development, and manufacturing and the level of quality control stand at the forefront of the industry regarding comprehensive strength.

After nearly ten years of development, we process a professional and experienced technical research team, We have over 300 employees, includes over 40 engineers, production workshop cover 30,000 square meters. With advanced testing equipments, leading R&D capability, and LPS production line, the company has passed authentication of BV, SGS, and CE certification. Quality is the life of enterprise! Grasp the quality source in all the details.
