Wear Resistant Hydraulic Concrete Pulverizer For Komatsu Excavator PC210 PC250

China Wear Resistant Hydraulic Concrete Pulverizer For Komatsu Excavator PC210 PC250 supplier
Wear Resistant Hydraulic Concrete Pulverizer For Komatsu Excavator PC210 PC250 supplier Wear Resistant Hydraulic Concrete Pulverizer For Komatsu Excavator PC210 PC250 supplier

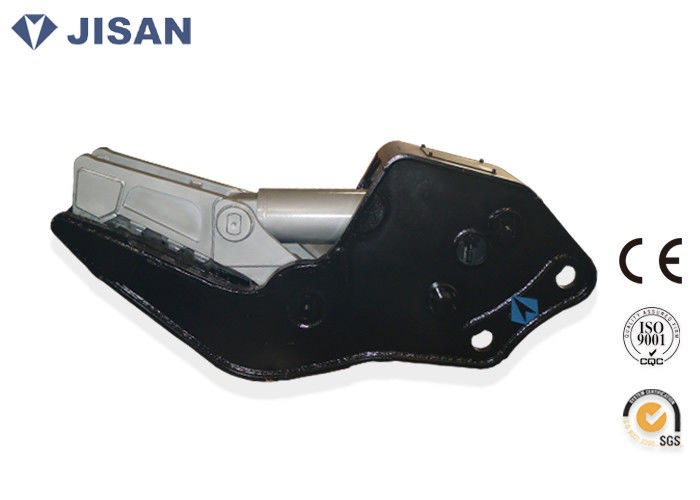

Large Image :  Wear Resistant Hydraulic Concrete Pulverizer For Komatsu Excavator PC210 PC250

Product Details:

Place of Origin: CHINA
Brand Name: JISAN
Certification: CE,ISO
Model Number: JS20S

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation ( EXW , FOB or CIF price )
Packaging Details: Export Wooden Cases
Delivery Time: 7-10 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Sets per month
Contact Now
Detailed Product Description
Material: Q345B, NM400 Warranty: 14 Months
Carrier: 18-24ton Color: Yellow Or As Request
Opening: 760mm Pressure: 320 Kg/cm2



Wear Resistant Hydraulic Concrete Pulverizer For Komatsu Excavator PC200 PC220





Features



1. Large bore dual cylinders: Strong power and excellent durability, reverse design to protect cylinder
2. Speed up valve: Fast cycle time
3. Lighter and stronger structure: High tensile special steel plate.
4. 360 degree hydraulic rotation optional
5. Working efficiency is two or three times of hydraulic breaker
6. Large opening design,working easily and conveniently.
7. Equipped with steel bar cutter, fufill crushing and cutting off exposed reinforced steel at same time
8. Low noise, can be used for city and high-tech zone demolition project


Wear Resistant Hydraulic Concrete Pulverizer For Komatsu Excavator PC210 PC250





Hydraulic pulverizer is composed with body, hydraulic cylinder, movable jaw and fixed jaw. The external hydraulic system offer hydraulic pressure for the hydraulic cylinder to make the movable jaw and fixed jaw open and close to achieve the effect of crushing objects.



Wear Resistant Hydraulic Concrete Pulverizer For Komatsu Excavator PC210 PC250





Parameter



Item/Model Unit JS15S JS20S JS25S
Suitable Excavator T 15 18-24 35
Weight Kg 1320 1500 1750
Opening Width Mm 620 760 900
Depth Mm 700 830 1000
Height Mm 2060 2250 2620
Width Mm 450 530 620
Length Mm 1050 1340 1580
Rated Pressure Kgf/cm2 320 320 320
Rated Flow Lpm 230 240 260
Crushing Force Middle Ton 80 95 120
Tip Ton 40 50 65
Cycle Time Open Sec 2 2.5 2.8
Close Sec 2.1 2.2 2.5





Application



· Apartment building, Workshop beams, Houses and other buildings demolition
· Steel recycling
· Concrete crushing



Wear Resistant Hydraulic Concrete Pulverizer For Komatsu Excavator PC210 PC250





Package



Inner is stretch film, outside is export wooden case or as customer’s request


Delivery



1. Delivery time: Usually 5-7days (1-5sets) after down payment.
2. We can arrange ocean or air transportation according to your request from any port of China.





Company Introduction



JISAN is one of the largest and most professional excavator attachment manufacturer with ten years experience. Our products have been exported to many countries in the world including India,Saudi Arabia, Iran, Brazil, Australia, New Zealand, Southeast Asia, USA and France etc.
With advanced imported CNC Center and strict quality control management, our products have been approved by ISO, CE authority.
