High Energy Hydraulic Concrete Breaker 155mm Chisel For 30 Ton CASE CX330 CX350

Certification
China JISAN HEAVY INDUSTRY LTD certification
China JISAN HEAVY INDUSTRY LTD certification
I'm Online Chat Now

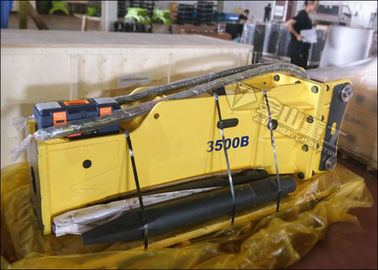

High Energy Hydraulic Concrete Breaker 155mm Chisel For 30 Ton CASE CX330 CX350

High Energy Hydraulic Concrete Breaker 155mm Chisel For 30 Ton CASE CX330 CX350
High Energy Hydraulic Concrete Breaker 155mm Chisel For 30 Ton CASE CX330 CX350 High Energy Hydraulic Concrete Breaker 155mm Chisel For 30 Ton CASE CX330 CX350

Large Image :  High Energy Hydraulic Concrete Breaker 155mm Chisel For 30 Ton CASE CX330 CX350

Product Details:
Place of Origin: China
Brand Name: JISAN
Certification: CE, ISO
Model Number: JSB3500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation ( EXW , FOB or CIF price )
Packaging Details: Export Wooden Cases or pallets
Delivery Time: 5-7 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1500 Sets per year
Detailed Product Description
Color: Yellow Or Customized Chisel Diameter: 155 Mm
Weight: 2800 Kg Working Pressure: 160-180 Kg/cm2
Type: Silence Type, Top Type, Side Type Hydraulic Rock Breaker Warranty: 14 Months
High Light:

hydraulic rock hammer

,

hydraulic breaker hammer

Daemo Hydraulic Rock Breaker Excavator Hammer For 30 Ton CASE CX330 CX350



Introduction



Hydraulic rock breaker is powered by an excavator or loader pump provides pressure oil, it can dig a fundamental role in building a more efficient clean up floating rock crevice in the rocks and soil. Optional hydraulic hammer excavator model is based on the principle of the operating environment to choose the most suitable hydraulic rock breaker
Hydraulic breaker has become an important tool for the job, it was installed in the hydraulic breaker backhoe loaders (also known as two busy) or wheel loader for crushing operations.



High Energy Hydraulic Concrete Breaker 155mm Chisel For 30 Ton CASE CX330 CX350 0



Description



1. Selected raw material – high quality heavy duty wear resistant steel
2. Hydraulic-gas system, increase stability
3. High-quality and durable wear parts
4. Advanced manufacturing facilities, introduced from Korea
5. High energy and impact frequency (high performance)
6. High-performance optimized hydraulic unit
7. Low maintenance, less breakdown, long using life
8. Fully enclosed housing with robust structure



High Energy Hydraulic Concrete Breaker 155mm Chisel For 30 Ton CASE CX330 CX350 1



Specification



Model Unit JSB200 JSB300 JSB400 JSB600 JSB800 JSB900 JSB1600
Weight Kg 200 270 330 450 680 1000 2000
Length Mm 1344 1420 1590 1895 2101 2401 2822
Pressure Kg/m² 80-110 90-120 110-140 120-150 130-160 150-170 160-180
Flow L/Min 20-30 25-50 40-70 50-90 60-100 80-110 100-150
Rate Bpm 600-1200 550-1000 500-900 400-800 400-800 350-700 350-600
Hose Inch 1/2 1/2 1/2 1/2 3/4 3/4 1
Chisel Mm 45 53 68/70 75 85 100 135
Suit Ton 0.8-3.0 1.0-3.5 4-7 6-9 7-14 11-16 16-21



Model Unit JSB1900 JSB2800 JSB3500 JSB4500 JSB5000 JSB5500 JSB6500
Weight Kg 2050 2800 3100 3950 4200 4900 7100
Length Mm 2828 3052 3254 3450 3709 3800 4430
Pressure Kg/m² 160-180 160-180 160-180 160-180 160-180 160-180 190-210
Flow L/Min 120-180 150-210 180-240 200-260 210-290 250-310 290-370
Rate Bpm 350-500 300-450 300-450 250-400 200-350 250-320 200-400
Hose Inch 1 1 1.25 1.25 1.25 1.25 1.25
Chisel Mm 140 150 155 165 175 180 210
Suit Ton 18-26 25-30 28-45 30-45 40-55 44-70 65-100



Application



Excavator rock breaker can be widely used to breaking rock, paving road, building demolition,mining,dismantling engineering and special engineering etc.



FAQ



1. Are you a manufacture?
    Yes,our factory was established in 2009.



2. What’s the MOQ and payment ?
    MOQ is 1 set.
    T/T, L/C,west union is accepted. Other terms can also be negotiated.



3. How long is your delivery time?
     Generally it is 3-5 days if the goods are in stock.
     It is 7-15 days if the goods are not in stock, and it's according to quantity.



4. Can you produce according to customers' design?
    Sure,we are professional manufacturer,OEM is available.
