Product Details:
Payment & Shipping Terms:
|
Working Pressure: | 150-170 Kg/cm2 | Chisel Diameter: | 100 Mm |
---|---|---|---|
Impact Rate: | 400-700 Bpm | Weight: | 950 Kg |
Hose Diameter: | 3/4 Inch | Warranty: | 14 Months |
High Light: | hydraulic hammer breaker,rock breaking hammer |

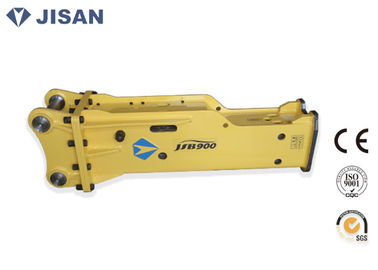

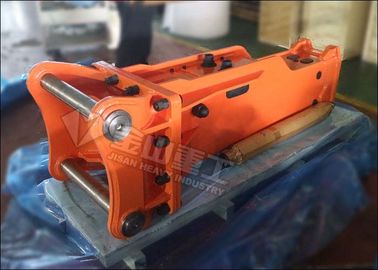

Soosan SB50 Hammer Rock Breaker Hydraulic Demolition Equipments For Excavator
Our breaker includes side type, top type, silenced type and backhoe loader type breaker.
Description
1. Real manufacturer, we make all the components with our own technology
2. Easy fitment onto any kinds of excavators
3. Durable body incorporating heavy duty rock claws
4. Perfectly matched tool and piston ensure maximum energy transfer to the material being broken
5. The hydraulic accumulator gives greater acceleration in the power stroke and reduces pressure peaks in the carrier hydraulic system.
6. Powerful hammering and long working life
7. Hydraulic breakers are widely applied to rock broken, mining, road, building engineering, dismantling engineering and special engineering (underwater project, tunnel project), etc.
Specification
Model | Weight (Kg) | Length (Mm) | Pressure (kg/cm2) | Flux (L/Min) | Rate (Bpm) | Hose (Inch) | Chisel (Mm) | Suit (Ton) |
JSB200 | 100/120 | 1100 | 90-120 | 15-25 | 700-1200 | 1/2 | 45/53 | 1.2-3.0 |
JSB400 | 298 | 1347 | 110-140 | 25-45 | 500-900 | 1/2 | 68/70 | 3.0-5.5 |
JSB600 | 421 | 1528 | 110-160 | 30-45 | 500-800 | 1/2 | 75 | 4.0-7.0 |
JSB800 | 577 | 1920 | 120-170 | 45-85 | 400-700 | 3/4 | 85 | 7.0-14 |
JSB900 | 973 | 2260 | 150-170 | 80-120 | 400-700 | 3/4 | 100 | 11-16 |
JSB1600 | 1855 | 2695 | 160-180 | 120-160 | 400-700 | 1 | 135 | 19-26 |
JSB1900 | 1989 | 2810 | 160-180 | 130-170 | 400-600 | 1 | 140 | 19-26 |
JSB2800 | 2420 | 2895 | 160-180 | 150-190 | 350-500 | 1 | 150 | 27-38 |
JSB3500 | 2750 | 3152 | 160-180 | 170-220 | 250-400 | 1 | 155 | 28-40 |
JSB4500 | 3160 | 3310 | 160-180 | 200-300 | 250-350 | 1.25 | 165 | 36-45 |
JSB5000 | 4210 | 3400 | 160-180 | 210-290 | 200-350 | 1.25 | 175 | 40-55 |
JSB5500 | 4720 | 3400 | 180-220 | 220-300 | 200-250 | 1.25 | 185 | 50-60 |
JSB6000 | 4910 | 3420 | 180-220 | 230-320 | 180-200 | 1.25 | 190 | 55-65 |
JSB6500 | 6100 | 3700 | 190-230 | 360-450 | 120-200 | 1.25 | 210 | 65-100 |
Application
1. Mining: Mountains, mining, crushing, secondary crushing
2. Metallurgy, slag cleaning, ladle furnace demolition, demolition equipment foundation body dissatisfied
3. Railway, tunnel, bridge, mountain down.
4. Highway: highway repair, cement pavement broken, foundation excavation.
5. Municipal gardens, concrete crushing, gas engineering construction, the transformation of the old city.
6. Building: the old building demolition, reinforced concrete broken.
Company Introduction
Jisan Heavy Industry Ltd. is a leading manufacturer of hydraulic breaker and attachments, widely used in the construction, demolition, mining industries and special project. At present, the capacities of research and development, and manufacturing and the level of quality control stand at the forefront of the industry regarding comprehensive strength.
After nearly ten years of development, we process a professional and experienced technical research team, We have over 300 employees, includes over 40 engineers, production workshop cover 30,000 square meters. With advanced testing equipments, leading R&D capability, and LPS production line, the company has passed authentication of BV, SGS, and CE certification. Quality is the life of enterprise! Grasp the quality source in all the details.
