Product Details:
Payment & Shipping Terms:
|
Jaw Depth: | 830 Mm | Appliction: | Move Building Structures, Reinforced Concrete Recycle |
---|---|---|---|
MOQ: | 1 Set | Color: | Green Or As Customer's Request |
Weight: | 1500 Kg | Crushing Force(Middle): | 95 Ton |
High Light: | concrete pulverizer for excavator,excavator pulverizer attachment |

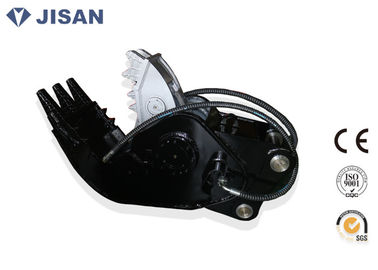

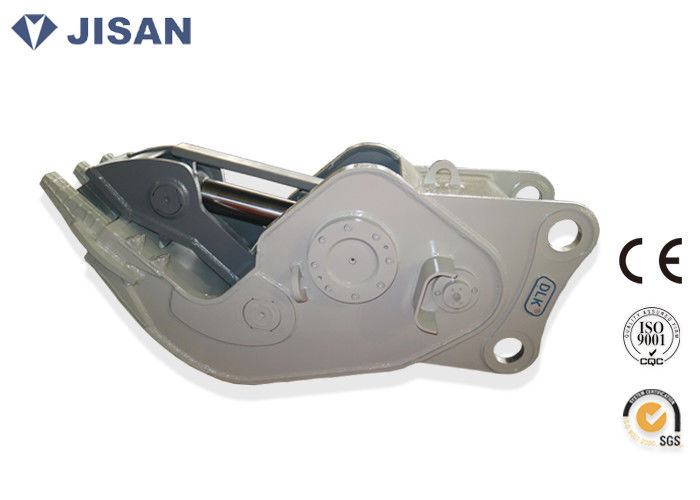

EC210 Excavator Demolition Concrete Pulverizer Metal Cutting Machinery
Hydraulic pulverizer is designed to get the best out of primary demolition operations, those complex activities aimed at breaking down and removing building structures in reinforced concrete.
Parameter
Item/Model | Unit | JS15S | JS20S | JS25S | |
Suitable Excavator | Ton | 15 | 18-24 | 35 | |
Weight | Kg | 1320 | 1500 | 1750 | |
Opening Width | Mm | 620 | 760 | 900 | |
Depth | Mm | 700 | 830 | 1000 | |
Height | Mm | 2060 | 2250 | 2620 | |
Width | Mm | 450 | 530 | 620 | |
Length | Mm | 1050 | 1340 | 1580 | |
Rated Pressure | Kgf/cm2 | 320 | 320 | 320 | |
Rated Flow | Lpm | 230 | 240 | 260 | |
Crushing Force | Middle | Ton | 80 | 95 | 120 |
Tip | Ton | 40 | 50 | 65 | |
Cycle Time | Open | Sec | 2 | 2.5 | 2.8 |
Close | Sec | 2.1 | 2.2 | 2.5 |
Features
1. Large bore dual cylinders: Strong power and excellent durability, reverse design to protect cylinder
2. Speed up valve: Fast cycle time
3. Lighter and stronger structure: High tensile special steel plate.
4. 360 degree hydraulic rotation optional
5. Working efficiency is two or three times of hydraulic breaker
6. Large opening design,working easily and conveniently.
7. Equipped with steel bar cutter, fufill crushing and cutting off exposed reinforced steel at same time
8. Low noise, can be used for city and high-tech zone demolition project
Application
· Apartment building, Workshop beams, Houses and other buildings demolition
· Steel recycling
· Concrete crushing
Company Introduction
JISAN is one of the largest and most professional excavator attachment manufacturer with ten years experience. Our products have been exported to many countries in the world including India,Saudi Arabia, Iran, Brazil, Australia, New Zealand, Southeast Asia, USA and France etc.
With advanced imported CNC Center and strict quality control management, our products have been approved by ISO, CE authority.
