Product Details:
Payment & Shipping Terms:
|
Length Of Tool: | 740 Mm | Main Body Material: | 20 Crmo |
---|---|---|---|
Weight: | 420 Kg | Applicable Carrier: | 4-7 Ton All Brands Excavator |
OEM Service: | OEM, ODM Service Available | Warranty: | 14 Months |
High Light: | Skid Steer Hydraulic Rock Breaker,OEM Hydraulic Rock Breaker,Hydraulic Hammer For Skid Steer |

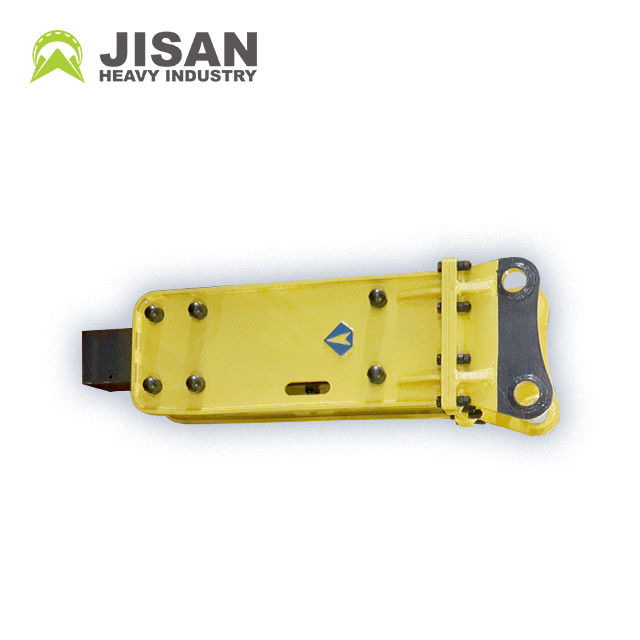

Skid Steer Hydraulic Rock Breaker Hammer For Excavator
Description
1. Excellent work efficiency.
JISAN hydraulic breakers adopt unique hydraulic circuit, requiring less oil, which greatly improve the efficiency of power generation.
2. Strict raw material sourcing.
Alloy steel material and super heat treatment ensure the product quality and durability.
3. More durable piston life.
Advanced grinding technology, 100% concentricity between piston and cylinder, which greatly reduce piston issue.
4. Simple structure, less maintenance
JISAN breakers require less components, reducing customers maintenance cost.
Specification
Model | Operating Weight(kg) | Working Flow | Working Pressure | Impct rate | Chisel Diameter | Hose diameter | Applicable Excavator weight | |||
Side type | Tope type/silence type | backhoe type | (L/Min) | (Bar) | (bmp) | (mm) | (inch) | (ton) | ||
JSB100 | 105 | 85 | 100 | 15-25 | 90-120 | 900-1400 | ¢40 | 1/2 | 0.8-2.0 | |
JSB200 | 135 | 140 | 167 | 20-40 | 90-120 | 700-1200 | ¢45 | 1/2 | 1.2-3 | |
JSB300 | 150 | 160 | 194 | 25-50 | 90-120 | 600-1100 | ¢53 | 1/2 | 2.5-4.5 | |
JSB400 | 300 | 355 | 363 | 40-70 | 110-140 | 500-900 | ¢68/70 | 1/2 | 4-7 | |
JSB600 | 410 | 440 | 450 | 50-90 | 110-160 | 500-800 | ¢75 | 1/2 | 6-9 | |
JSB800 | 450 | 640 | 730 | 60-100 | 120-170 | 400-700 | ¢85 | 3/4 | 7-14 | |
JSB900 | 800 | 900 | 970 | 80-120 | 150-170 | 400-700 | ¢100 | 3/4 | 11-16 | |
JSB1600 | 1600 | 1800 | 1950 | 120-160 | 160-180 | 400-700 | ¢135 | 1 | 19-26 | |
JSB1900 | 1840 | 1970 | 2050 | 130-170 | 160-180 | 400-600 | ¢140 | 1 | 19-26 | |
JSB3500 | 2800 | 2850 | 3000 | 170-220 | 160-180 | 250-400 | ¢155 | 1 | 28-40 | |
JSB4500 | 3200 | 3160 | 3300 | 200-300 | 160-180 | 250-350 | ¢165 | 1.1/4 | 36-45 | |
JSB5000 | 4000 | 4210 | 4250 | 210-290 | 160-180 | 200-350 | ¢175 | 1.1/4 | 40-55 | |
JSB5500 | 5000 | 4800 | 4900 | 220-300 | 180-220 | 200-250 | ¢185 | 1.1/4 | 50-60 | |
JSB6000 | 5700 | 5300 | 5400 | 230-320 | 200-240 | 150-200 | ¢195 | 1.1/4 | 55-65 | |
JSB6500 | 6200 | 7200 | 7400 | 360-450 | 200-240 | 150-200 | ¢205 | 1.1/4 | 65-100 |

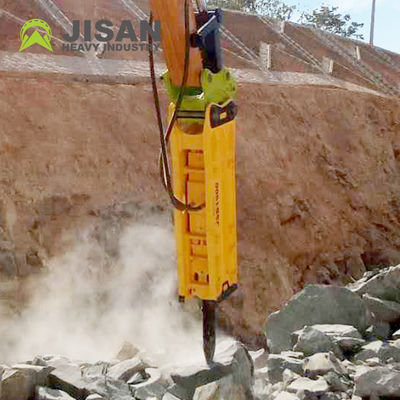

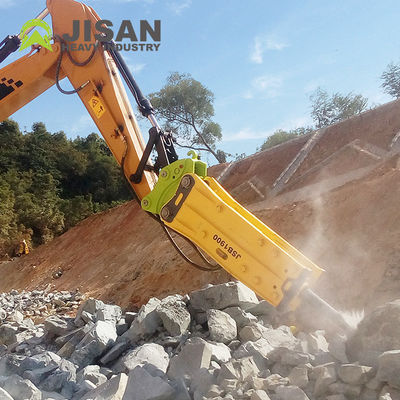

Application
1. Compact range
2. Medium& Heavy-duty range
FAQ
1 What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, Western Union (can be) could accepted
2: What about the delivery time?
A: 7 days after receiving the payment.
3: What about the warranty time?
A: 14 months after shipment.
4. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
jisan hydraulic breaker 2021.pdf
Contact Person: Mr Scott
Tel: +8618615951533
