CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying

Certification
China JISAN HEAVY INDUSTRY LTD certification
China JISAN HEAVY INDUSTRY LTD certification
I'm Online Chat Now

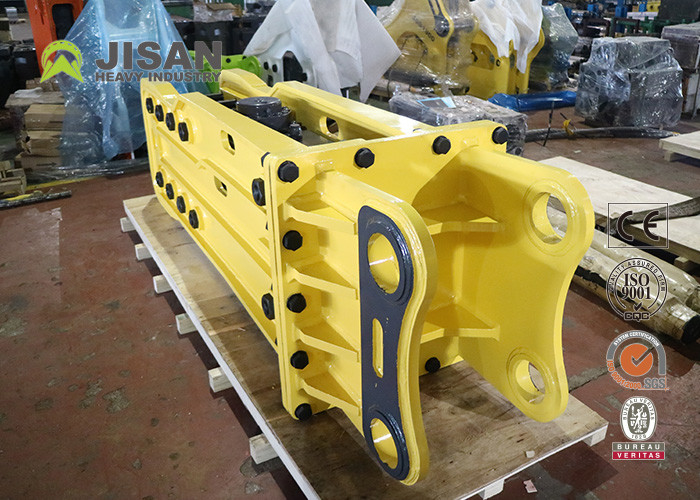

CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying

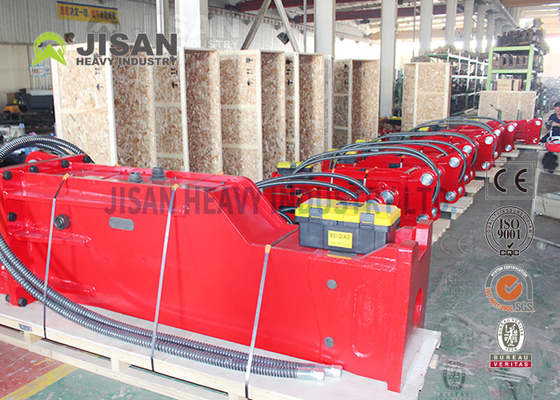

CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying

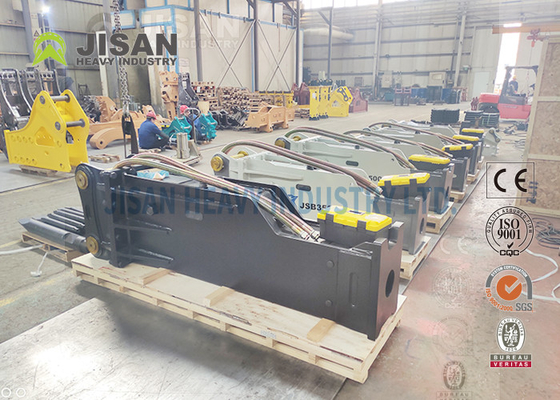

CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying

Large Image :  CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying

Product Details:
Place of Origin: China
Brand Name: JISAN
Certification: CE, ISO
Model Number: JSB3500T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation ( EXW , FOB or CIF price )
Packaging Details: Export Wooden Cases or Pallets
Delivery Time: 5-7 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1500 Sets per year
Detailed Product Description
Impact Rate: 250-400 Bpm Chisel Diameter: 155 Mm
Warranty: 14 Months Package: Wooden Cases Or Pallets
Chisel Type: Moil, Wedge, Flat, Blunt, Conical Type Chisel Color: Yellow Or As Request
High Light:

OEM Hydraulic Rock Hammer

,

ISO Excavator Hydraulic Rock Breaker

,

CE Approved Excavator Hydraulic Breaker

Promotion CE/ISO Good Quality Factory Price OEM Excavator Hydraulic Rock Breaker

jisan hydraulic breaker 2022.pdf


Hydraulic Breaker Type

Side type hydraulic breaker has the advantage of convenient maintenance and flexible operation, it's the first choice for mining and quarrying.
Top type hydraulic breaker is applied to special operation that in larger elevation angle at municipal project dismantling.
Silence type hydraulic breaker is fully compliance with international environmental standards,it can adapt to the urban demolition work and tunnel construction.



hot sale promotion CE/ISO good quality factory price OEM excavator hydraulic rock breaker

Hydraulic Breaker Main Features:

1. Korea made cylinder;

2. Japan made NOK oil seal;

3. Full-closed housing to protect the main body;

4. Strong impact;

5. Longer lifetime of usage;

Excellent performance with high durability. The company has been developed to meet with the high standards of the current market.The demand for high durability and low maintenance costs on hydraulic equipment are combined in the total design of our attachments.

CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 0

Product Paramenters
Item/Model
weight
(kg)
length
(mm)
pressure
(bar)
flow
(lpm)
rate
(bmp)
hose
(inch)
chisel
(mm)
suit(ton)
JSB100
100
1000
90-120
15-25
900-1400
1/2
40
0.8-2.0
JSB200
167
1300
90-120
20-40
700-1200
1/2
45
1.2-3.0
JSB300
194
1400
90-120
25-50
600-1100
1/2
53
2.5-4.5
JSB400
363
1700
110-140
40-70
500-900
1/2
68/70
4-7
JSB600
450
1750
110-160
50-90
500-800
1/2
75
6-9
JSB800
730
2100
120-170
60-100
400-700
3/4
85
7-14
JSB900
970
2400
150-170
80-120
400-700
3/4
100
11-16
JSB1600
1950
2700
160-180
120-160
400-700
1
135
19-26
JSB1900
2050
2860
160-180
130-170
400-600
1
140
19-26
JSB3500
3000
3100
160-180
170-220
250-400
1
155
28-40
JSB4500
3300
3286
160-180
200-300
250-350
1 ¼
165
36-45
JSB5000
4250
3800
160-180
210-290
200-350
1 ¼
175
40-55
JSB5000
4900
3700
180-220
220-300
200-250
1 ¼
185
50-60
JSB6000
5400
4200
200-240
230-320
150-200
1 ¼
195
55-65
JSB6500
7400
4300
200-240
320-490
150-200
1 ¼
205
65-100
Feature Details
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 1
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 2
Excavator hydraulic breaker is one of the new front-end equipment accessories of excavator, which is widely used. Excavator hydraulic breaker has the characteristics of high strength, high power, small size and humanized product. Because the excavator hydraulic breaker can quickly and effectively break concrete, mining, boulder breaking, bridge repair, earthquake rescue and other disasters, rescue trapped people, and play a role in rescue and disaster relief. Therefore, it is often used for demolition and rescue in various places, and is a commonly used crushing tool for fire brigade, traffic police, industrial and mining enterprises and other disaster relief and construction departments. It can also be used in construction demolition operations, reinforced concrete separation and other conditions. They have a wide range of applications such as demolition, deconstruction, primary rock excavation, secondary rock breaking, trenching, foundation works, asphalt cutting, etc. Our excavator hydraulic hammers are suitable for any type of carrier, with operating weights ranging from 50kg to over 10,000kg. The over-development of breakers has given rise to different levels of advancement, such as self-lubricating systems, sound and vibration damping systems, automatic rock hardness adjustment systems, energy recovery, solid concepts, and more.
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 3
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 4
Precautions for safe operation.
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 5
1.Proper position must be applied for an effective usage of breaking force. When position is incorrect,hammering energy of the piston is too weak to break rocks,
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 6
2.On the contrary,when position is excessive enough to break rocks with front of the base machine raised, the machine may suddenly tit forward the moment rocks are broken. Then, the breaker body or the end ofbracket may violently hit against rocks and result in damage.
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 7
3.lt is undesirable to carry out hammering under the below condition, because vibrations during hammering may be transmitted to tracks of the base machine. During hammering,however,proper position must be always applied to the breaker.Special care must be taken not to hammer under abnormal condition.
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 8
4.Apply same direction of boom force in line with the rod and place the rod in the rock with hammering surface as vertical as possible. lf hammering surface is oblique,the rod may slip during hammering. Thiscauses the rod to seize and to be broken and piston to be damaged. When breaking,fully stabilize therod first and then select the point of a rock on which hammering can be performed in a stable condition.
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 9
5.Do not use the breaker rod to move rocks. The stone claws are designed for this purposes.
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 10
6.Do not use the breaker to sweep the ground of debris. This may damage the breaker and the housing will wear out more quickly.
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 11
7.Do not operate breaker when all components except rod are immersed in water and mud. Underwater usage of the breaker will cause internal damage to the breaker. Consult jisan for modifications if you have an underwater requirement.
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 12
8.Do not allow the breaker to fall to a rock. Falling down the breaker will apply excessive force to the breaker or the carrier,causing damage to theparts of the breaker and carrier.
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 13
9.Do not operate the breaker with the carriers boom,stick or bucket cylinders at the end of their stroke (either fully extended or fully retracted). Damage to the carrier may result
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 14
10.Do not use the breaker or breaker rods for lifting. Lifting eyes on the breaker are for storage and maintenance purposes only.

11.Warm-up of machine prior to operation - Do not operate the machine right after starting the engine.ldle the machine for warm-up. Warm thehydraulic oil sufficiently especially in winter or in the cold place. - Especially in winter,the carrier's engine should be warmed up for 5 to 10 minutes 30~4O℃(86~105'F)before breaker operation. - When operating the hydraulic breaker,idle the engine and operate the hydraulic breaker with a light load.

12.Stop operation when hoses are vibrating abnormally. Check the hoses on the high pressure and low pressure sides of the breaker for abnormal vibration.lfthey are vibrating abnormally,contact the nearest jisan dealer.
13. Avoid blank hammering. Blank hammering accelerates wear and tear on breaker and carrier components and may result in failureof one or more components.Excessive blank hammering may be considered equipment abuse and mayresult in voiding warranties. In case of blank hammering,hammering sound changes.
14.Operate the breaker at proper engine speed. Break rocks at the specified engine speed. Raising engine speed more than necessary does notstrengthen hammering force but increase oil temperature to the detriment of piston and valve.
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 15
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 16
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 17
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 18
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 19
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 20
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 21
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 22

CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 23CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 24

Company Introduction


Jisan Heavy Industry Ltd is a leading manufacture of hydraulic breaker and excavator attachments. The main products have passed CE and ISO9001 certification. We have already established over 120 agencies in the world. As one of the largest excavator attachments manufacture in China, we can supply all kinds of attachments to satisfy clients different demand.

Sincerely welcome friends to join us for long term co-operation.



Our Advantages

1.JISAN HEAVY INDUSTRY LTD. is one of the largest and most professional hydraulic breaker manufacturers with 12 years experience,
specialized in R&D and manufacture of JISAN Series Hydraulic Breaker.
2.Our products have been exported to many countries in the world including India, Saudi Arabia, South America, Australia,
New Zealand, Southeast Asia, USA, Europe, and South Africa etc.
3.Main Advantages of JISAN Hydraulic Breaker:
1.JISAN HEAVY INDUSTRY LTD. is one of the largest and most professional hydraulic breaker manufacturers with 11 years experience,
specialized in R&D and manufacture of JISAN Series Hydraulic Breaker.
2.Our products have been exported to many countries in the world including India, Saudi Arabia, South America, Australia,
New Zealand, Southeast Asia, USA, Europe, and South Africa etc.
3.Main Advantages of JISAN Hydraulic Breaker:
Korea made cylinder;
NOK oil seal, Oil seal durability design;
Low noisy. Full-closed housing to protect the main body;
Strong impact;
Longer lifetime of usage;
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 25
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 26
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 27
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 28
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 29
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 30
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 31
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 32
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 33
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 34
Applications
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 35
Product packaging
1. Inner is stretch film, outside is export wooden case or as customer's request.
2.The standard free spare parts: two Chisels, twohoses, one set of repair tools with tool box,one Nitrogen bottle, one Nitrogen

3.Other accessories are shown below:

Plastic cloth, Tensile membranes, Packing tape, Steel Belt and Wooden box contribute a wonderful packing procedure. With Plastic and tensile membranes, can prevent breaker rusting when sailing on the sea for long time. Packing tape , steel belt and outside wooden box can protect breakers free from collision.



CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 36
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 37
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 38
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 39
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 40
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 41
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 42
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 43
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 44
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 45
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 46




CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 47
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 48
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 49
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 50
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 51
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 52
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 53
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 54
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 55
Exhibition
JISAN winned well recognition by clients from different countries on exhibition.

CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 56

CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 57

Certifications
Various patent certificates
CE ISO OEM Excavator Hydraulic Rock Breaker For Mining And Quarrying 58

FQA

Q: Are you a manufacturer?
A: Yes,our factory was established in 2009.

Q: Are you sure your product will fit my excavator?
A: Our equipments are suitable for most excavators. Show us your excavator model, we'll confirm the solution.

Q: How about your products warranty?
A: 12 months warranty for hydraulic breaker, beyond the warranty period.

Q: Can you produce according to customers' design?
A: Sure, OEM/ODM service available. We are professional manufacturer in Yantai.

Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,L/C, Western Union accepted, other terms can be negotiated.

Q: How about delivery time?
A: 5-25 work days after the payment.

Q: How about the package?
A: Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.

Q: Which country have you exported?
A: Saudi Arabia, America, Thailand, Cyprus, India, Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc.
