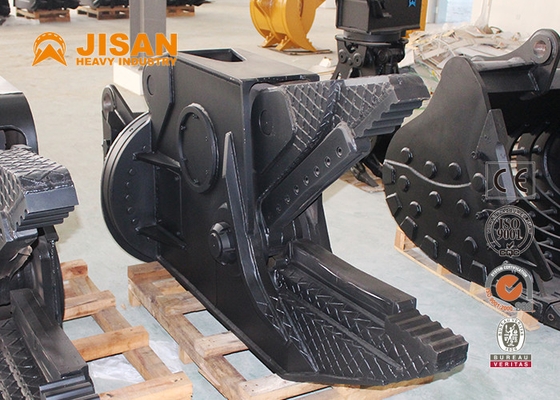

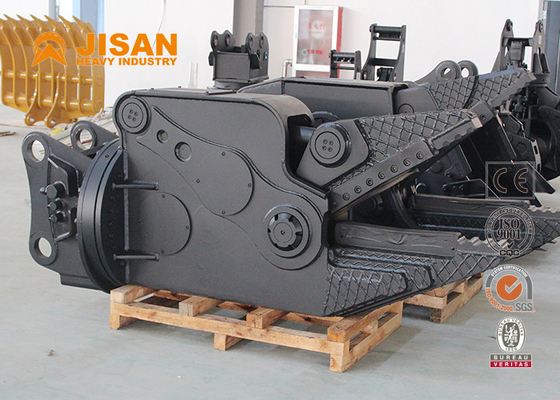

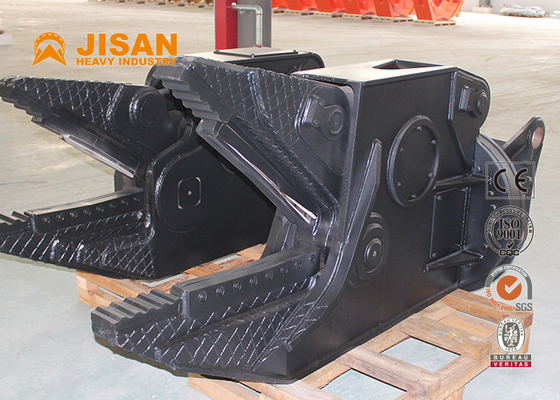

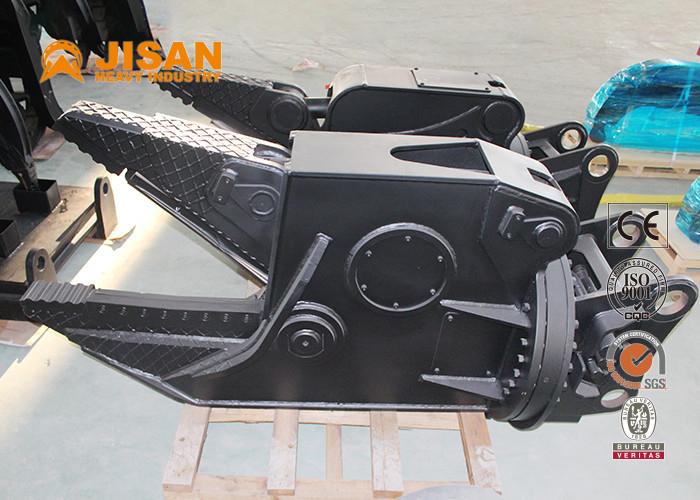

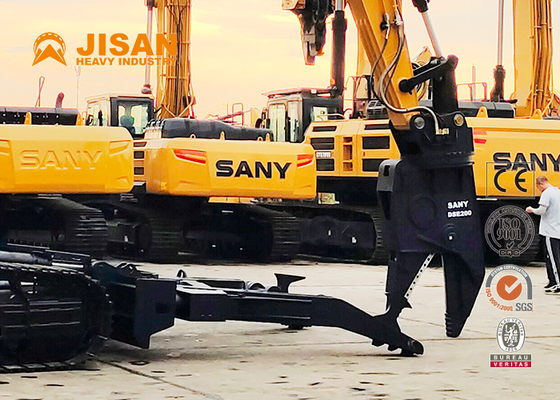

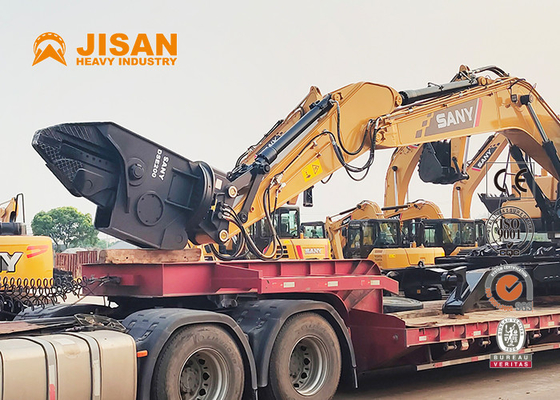

Car Cutting Scissors Hydraulic Scrap Shear For Dismantling Waste Vehicles

Car Cutting Scissors Hydraulic Scrap Shear For Dismantling Waste Vehicles
Car Cutting Scissors Hydraulic Scrap Shear For Dismantling Waste Vehicles

Large Image :  Car Cutting Scissors Hydraulic Scrap Shear For Dismantling Waste Vehicles

Product Details:
Place of Origin: China
Brand Name: Jisan
Certification: CE, ISO
Model Number: JS250
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation ( EXW , FOB or CIF price )
Packaging Details: Export Wooden Cases or pallets
Delivery Time: 10-14 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 800 Sets Per Year
Detailed Product Description
Material: Q345B, NM400 Color: As Request
Service: OEM Condition: 100% New
Carrier: 18-24ton Hold Down Arms: Optional
High Light:

Excavator Attachment Concrete Crusher

,

24ton Hydraulic Scrap Shear

,

Waste Vehicles Excavator Concrete Crusher

Excavator Attachment Hydraulic Shear Car Scrap Cutting Scissors For Dismantling Of Waste Vehicles



jisan hydraulic shear a car dismantling 2022.pdf

jisan hydraulic shear c car dismantling 2022.pdf

jisan hydraulic shear e car dismantling 2022.pdf



Product Description



The excavator hydraulic power shear is suitable for various operations, including breaking the steel structure, scrap steel processing, cut iron material,steel, tank and tube etc. Its unique design and strengthed material ensure the efficient operation. The cutting force is more powerful compared to ordinary hydraulic shear performance.



Dismantling typeMotor busBusBusMinibusTruckIt can install the special hydraulic shears for automobile dismantling or the hydraulic shears optimized for crushing, cutting, resource classification and recycling of dismantled materials.Handling EquipmentStandard clamping arm is for fastening and fixing disassembled objects. The automobile dismantling machine is equipped with a left-right and open-closed type clamping arm, not a open-closed type.Clamping ArmHydraulic quick hitch can be installed, with switching faster and safer.Quick InstallationThe auto-spin type hydraulic piping for hydraulic shear corresponding to different metal dismantling.Rotary Hydraulic Shear PipingBucket cylinders and arm cylinders are reinforced suitable for heavy load dismantling operations.Reinforced CylinderTo ensure safety, the basic cab equipped with vertical type protection grid.CabIt uses the original models of high-fuel-efficiency engine that unanimously gained good reputation. Combined with a jet pump unit that injects fuel through ultra-high pressure, and EGR that lowers the suction temperature to control oxygen concentration, so as to maintain highest combustion power by multi-stage injection.Higher-rated EngineIt can ensure the balance of the machine body and the safety and stability of the operation. That makes it easier to grasp heavy objects such as scrapped cars.Incremental Balance WeightHD arm and fore-arm with excellent structural strength, can withstand the uniquely shock, vibration and huge during dismantling operation.Reinforced Handling EquipmentEquipped with the reinforced frame, the upper frame that bears heavy load during tearing operation is strengthened, and the bottom is reinforced with steel. The lower frame to ensure the working area of the clamping arm, and the rotating large plate unit is uniquely designed while maintaining the strength.Special Designed Body Structure







Features







1. 360 degree hydraulic rotation, increase working efficiency
2. Speed Valve installed, reduces cycle time
3. Easy to replace the blade, reduces machine downtime
4. Made from high-grade steel to ensure maximum strength of tool and the best wear resistance
5. Use for cutting iron material and steel structure



6. Can be customized suit for different working sites



7 Suit for all brands of excavator







Parameter







Item/Model Unit JSA80 JSA160 JSA230 JSC200 JSE260
suitable Excavator Ton 6-10 9-16 18-25 22-36 18-25
Weight Kg 450 900 1600 1600 1600
Opening mm 500 650 850 650 720
Length mm 1690 2110 2530 2400 2390
Width mm 890 1115 1430 1175 1050
Blade Length mm 150*2 185*2 230*2 520 600
Shear Force ton 150 160 208 140 170
Pressure bar 220 220 320 320 320
Flow L/min 120 180 200 200 200
Rotating Motor Pressure bar 100 100 100 100 100
Rotating Motor Flow L/min 20-30 20-30 20-30 20-30 20-30
Rotation Speed r/min 10-12 10-12 10-12 10-12 10-12




Car Cutting Scissors Hydraulic Scrap Shear For Dismantling Waste Vehicles 0

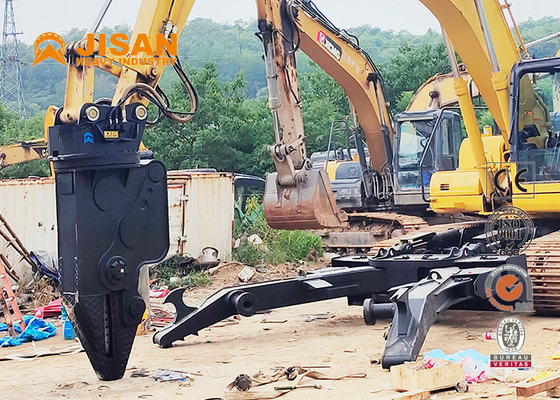

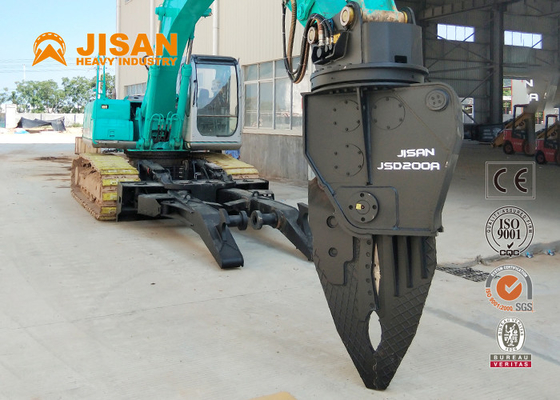

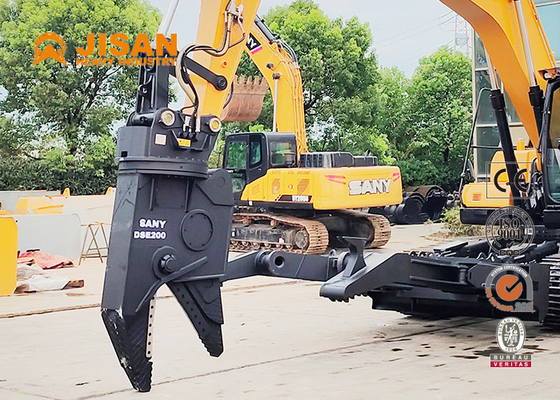

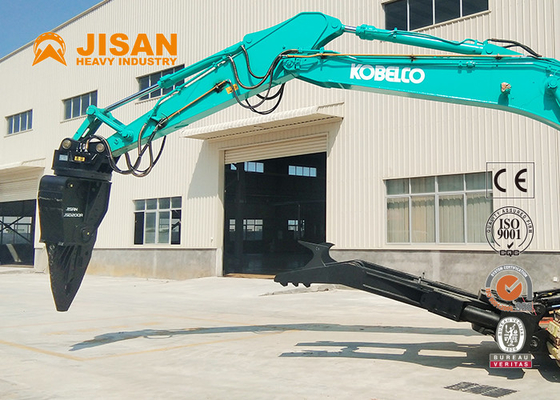

Special Clamp Arm







Automobile dismantling machine is high strength of unibody structure, is equipped with special clamp arm, can be effectively fixed and fasten scrapped automobiles. Multi-function dismantling machine equipped with double clamp arm, can performance up and down or so action, unique handle grip and clamp teeth design, can clamp the dismantling objective tightly, remove material while cut off with rotating. Automobile dismantling machine equipped with single acting clamp arm, performance up-down movement, make the operation more simple. All equipped with wire and feeder, innovative design helps to improve the working efficiency. Car Cutting Scissors Hydraulic Scrap Shear For Dismantling Waste Vehicles 1
Car Cutting Scissors Hydraulic Scrap Shear For Dismantling Waste Vehicles 2 Car Cutting Scissors Hydraulic Scrap Shear For Dismantling Waste Vehicles 3







Car Cutting Scissors Hydraulic Scrap Shear For Dismantling Waste Vehicles 4 Car Cutting Scissors Hydraulic Scrap Shear For Dismantling Waste Vehicles 5 Car Cutting Scissors Hydraulic Scrap Shear For Dismantling Waste Vehicles 6 Car Cutting Scissors Hydraulic Scrap Shear For Dismantling Waste Vehicles 7
Wire extractor
The clamp arm is equipped with claw type wire extractor, suitable for loading-unloading wiring harness.
Kick-out device
Equipped with a kick-out device for easy bending of strip material.
Spherical handle
Clamp dismantling components, can turn dismantled objective to the front and rear.
Clamp teeth
Using strong clamping force, it can also cut off and disassemble components.







Car Cutting Scissors Hydraulic Scrap Shear For Dismantling Waste Vehicles 8







Item/Model Unit JSCA15D JSCA20D JSCA15S JSCA20S
Suitable Excavator ton 9-16 17-25 9-16 17-25
Weight kg 2800 3200 2100 2800
Max Jaw Height mm 3800 3600 - -
Up and Down Height mm 2200 2600 2000 3000
Pressure bar 250 280 250 280
Flow L/min 220 220 120 120







Product Inspection







1.Every Product will pass through ring upon ring of quality inspection before delivery to our customer.
2.We will do impact test for every product before delivery.







Working Scene







Widely used for scrap automobile handling and other scrap recycle.







Car Cutting Scissors Hydraulic Scrap Shear For Dismantling Waste Vehicles 9







Packing & Delivery







Package
Inner is stretch film, outside is export wooden case or as customer’s request
Delivery
1. Delivery time: Usually 5-7days (1-5sets) after down payment.
2. We can arrange ocean or air transportation according to your request from any port of China.







Company Introduction







Jisan Heavy Industry Ltd. is a leading manufacturer of hydraulic breaker and attachments, widely used in the construction, demolition, mining industries and special project. At present, the capacities of research and development, and manufacturing and the level of quality control stand at the forefront of the industry regarding comprehensive strength.

After nearly ten years of development, we process a professional and experienced technical research team, We have over 300 employees, includes over 40 engineers, production workshop cover 30,000 square meters. With advanced testing equipments, leading R&D capability, and LPS production line, the company has passed authentication of BV, SGS, and CE certification. Quality is the life of enterprise! Grasp the quality source in all the details.



Car Cutting Scissors Hydraulic Scrap Shear For Dismantling Waste Vehicles 10
