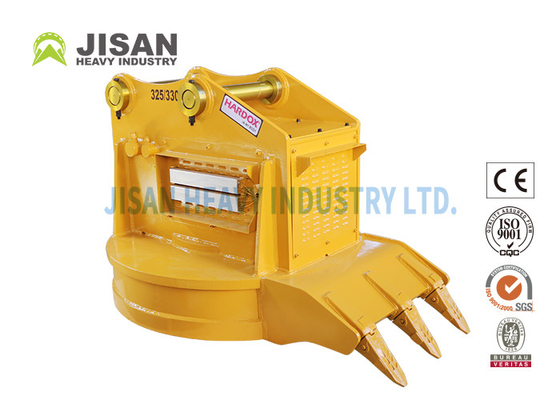

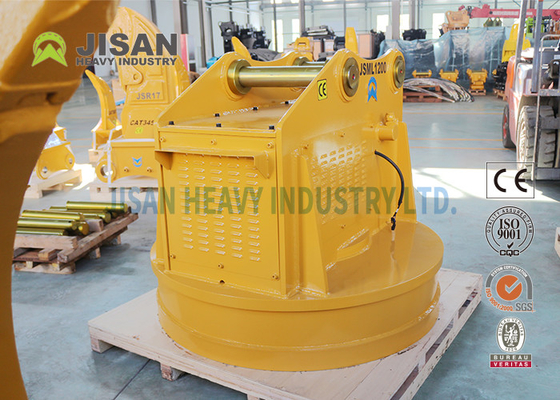

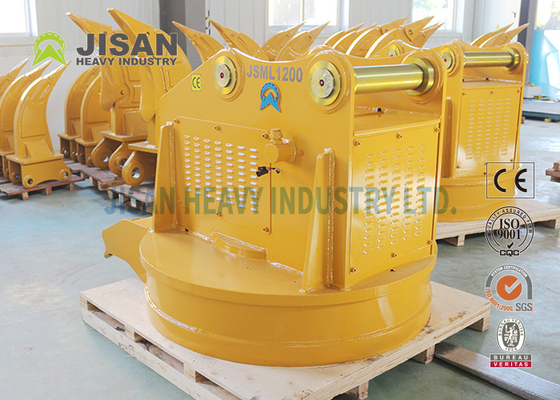

Crane / Forklift Excavator Attachment , Round Scrap Lifting Magnet Ripper

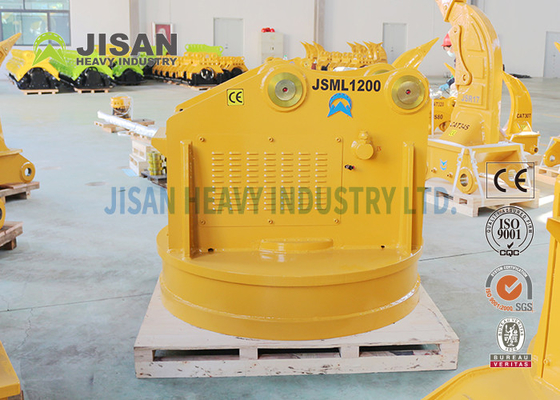

Crane / Forklift Excavator Attachment , Round Scrap Lifting Magnet Ripper

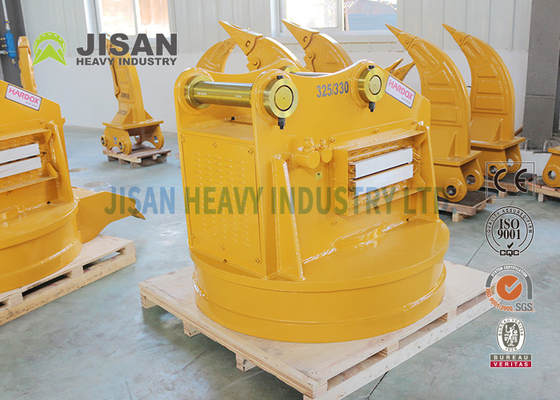

Crane / Forklift Excavator Attachment , Round Scrap Lifting Magnet Ripper

Large Image :  Crane / Forklift Excavator Attachment , Round Scrap Lifting Magnet Ripper

Product Details:
Place of Origin: China
Brand Name: Jisan
Certification: CE
Model Number: JSM1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation ( EXW , FOB or CIF price )
Packaging Details: Export Wooden Cases or pallets
Delivery Time: 10-14 Workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Sets Per Year
Detailed Product Description
Weight: 1500kg Diameter: 1200mm
Power System: Hydraulic System Dimension(L*W*H): Oem
Warranty: 1 Year Color: Yellow Or As Customer's Request
High Light:

Forklift Excavator Attachment

,

Crane Excavator Attachment

,

Round Scrap Lifting Magnet

Round Scrap Lift Magnet Ripper For Crane Excavator Or Forklift Excavator Attachment​

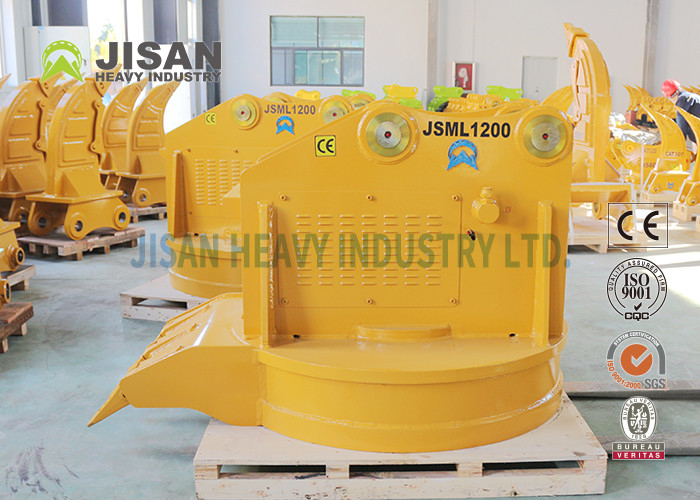

Crane / Forklift Excavator Attachment , Round Scrap Lifting Magnet Ripper 0

Product Paramenters



Item/Model Unit JSML04 JSML06 JSML08 JSML10 JSML14
Installation ton 7-11 12-16 17-23 24-30 31-40
Weight kg 1500 1890 2000 2200 2500
Power kW 8 8 10 10 15
Outer Diamete mm 800 900 1100 1200 1300
Operating Pressure kg/cm2 180 190 200 210 250
Operating Flux L/min 50-100 90-110 100-140 130-170 200-250



Applicable Scene



Hydraulic Electromagnet Lifting Magnet Installed On Excavator Hydraulic Electromagnet Lifting Magnet has built-in hydraulic generator and control box, which can be used after connecting the oil pipe; the control box, the suction and release time is within 1 second; the front end is equipped with bucket teeth for simple sorting and excavation, but it cannot be strongly impacted; 220V electromagnet, The suction force is more than 3 times that of a 24V magnet.

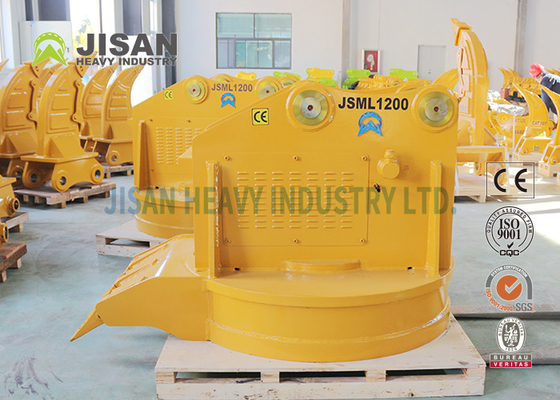

Crane / Forklift Excavator Attachment , Round Scrap Lifting Magnet Ripper 1



Feature Details

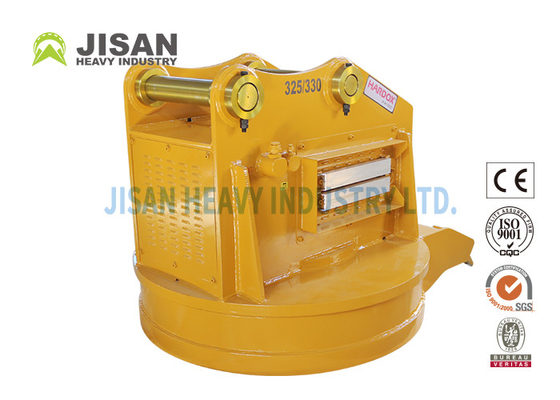

Crane / Forklift Excavator Attachment , Round Scrap Lifting Magnet Ripper 2



1, using a fully sealed structure, good moisture resistance. 2, optimized by computer design, reasonable structure, light weight, large suction, low energy consumption. 3. Excitation coils are treated by a special process to improve the electrical and mechanical properties of the coils. The heat-resistance grade of the insulation material is up to Class C, the overall insulation of the suction cups is H-class and the service life is long. 4. The rated electrification continuation rate of ordinary electromagnets has been increased from the previous 50% to 60%, which has increased the use efficiency of electromagnets. 5. The high-temperature type electromagnet adopts a unique heat insulation method. The temperature of the sucked object is increased from the previous 600°C to 700°C, which expands the adaptability of the electromagnet. 6, Easy installation, operation and maintenance.

Excavator Electro Lifting Magnet’s mounting arrangement overcomes the problem of working in an open yard where the overhead cranes cannot be used. It is suitable for processing cast iron ingots, steel balls and various scrap steels. The excitation mode can be adopted: constant voltage mode, strong magnetic mode and over-excitation mode.



Product packaging



1. Inner is stretch film, outside is export wooden case or as customer's request.

2.The standard free spare parts: one equipment, one hoses, one set of repair tools with tool box, one certificate and one
brochure.

Our Advantages

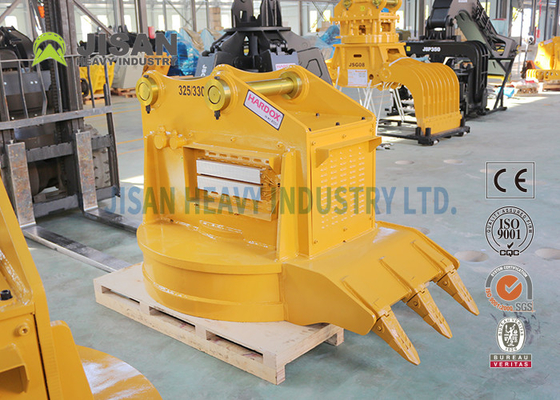

Crane / Forklift Excavator Attachment , Round Scrap Lifting Magnet Ripper 3
-Yantai Jisan Heavy Industry Ltd.-

Yantai Jisan Heavey Industry Ltd. is a modernized manufacture enterprise which is fully committed to research and developments.The main products iclude:Hydraulic breaker,Pile hammer,Hydraulic power shear,Multi shear, Hyraulic roating log grapple,Hyraulic rock grapple,Hydraulic quick hitch.
The company has independent import and export rights.Products are sold all over the world.The company provi des supporting and proccessing services for the domestic and forign many excavator manufacturers to maximiz e meet customer's requirements.
In the future,Jisan Company will make full use of rich experience accumulated and the core competitive advantage formed in the past few years,to stride forward the world first-class enterprise.

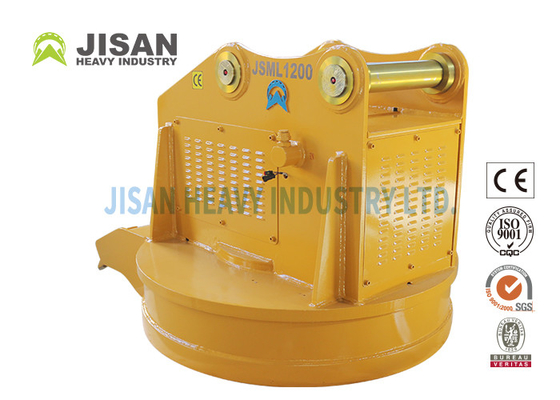

Crane / Forklift Excavator Attachment , Round Scrap Lifting Magnet Ripper 4

Crane / Forklift Excavator Attachment , Round Scrap Lifting Magnet Ripper 5

Crane / Forklift Excavator Attachment , Round Scrap Lifting Magnet Ripper 6
