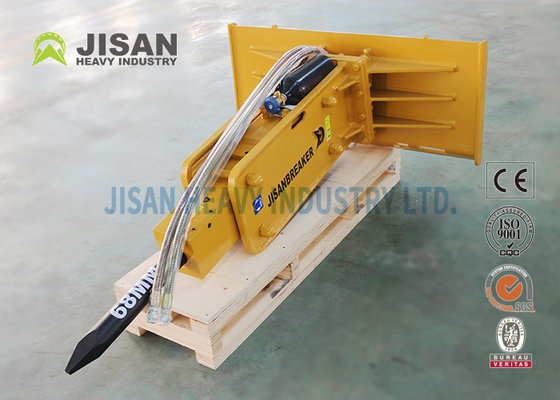

Rock Concrete Breaker Hydraulic Skid Steer Loader Hammer Small Skid Steer Loader
Product Paramenters
| Item/Model |
Weight(kg) |
Length(mm) |
Pressure(bar) |
Flow(lpm) |
Rate(bmp) |
Hose(inch) |
Chisel(mm) |
Suit(ton) |
| JSB400 |
363 |
1700 |
110-140 |
40-70 |
500-900 |
1/2 |
68/70 |
4-7 |
| JSB600 |
450 |
1750 |
110-160 |
50-90 |
500-800 |
1/2 |
75 |
6-9 |
Feature Details
✔️Wear resistant steel shell.
✔️Appreance can be customized.
✔️Logo can be customized.
✔️Simple operation and easy maintenance.
✔️Advanced Korean technology.
✔️More powerful stroke and reliable.
✔️Mining:mining, secondary breaking.
✔️Metallurgy:clearing slag,demolition of furance and foundation.
✔️Road:Repairing,breaking,foundation work.
✔️Railway:Tunneling demolition of bridge.
✔️Construction:Demolition of building and reinforced concrete.
✔️Ship reparing:Clearing clam and rust from the hull.
✔️Others:Breaking frozen mud.
Our Advantages
1.JISAN HEAVY INDUSTRY LTD. is one of the largest and most professional hydraulic breaker manufacturers with 12 years experience, specialized in R&D and manufacture of JISAN Series Hydraulic Breaker.
2.Our products have been exported to many countries in the world including India, Saudi Arabia, South America, Australia,
New Zealand, Southeast Asia, USA, Europe, and South Africa etc.
3.Main Advantages of JISAN Hydraulic Breaker:
1.JISAN HEAVY INDUSTRY LTD. is one of the largest and most professional hydraulic breaker manufacturers with 11 years experience, specialized in R&D and manufacture of JISAN Series Hydraulic Breaker.
2.Our products have been exported to many countries in the world including India, Saudi Arabia, South America, Australia,
New Zealand, Southeast Asia, USA, Europe, and South Africa etc.
3.Main Advantages of JISAN Hydraulic Breaker:
Korea made cylinder;
NOK oil seal, Oil seal durability design;
Low noisy. Full-closed housing to protect the main body;
Strong impact;
Longer lifetime of usage;
Product packaging
We supply all kinds of accessories for breakers, each part is strictly quality controlled including the raw material, heat treatments, size and production technology, etc.
✔️Back head: Material: 20CrMo, impact energy is accumulated due to charged nitrogen gas in the block.
✔️Front Head: Using 20CrMo material, high quality with long life using.
✔️Valve: We adopt production process by grinding machine, with high precision.
✔️Cylinder body: Material: 20CrMo, it is the best quality material.
✔️Piston: Longer service life by optimized design and high-quality special steel.
✔️Front Head: Using 20CrMo raw material, which is provided by a domestic famous manufacturer, forging, again and again, to make the internal organization tighter and increasing the hydraulic breaker wear-resistance.
✔️Chisel: The specially heat-treated chisel is directly applied to break rocks. There are four types for choosing: Moil, Blunt, Flat, Conical Point. The material is 42Crmo.
✔️Main Body: Including Front head, cylinder, and back head. Ensure your breaker will be in the best performance.
✔️Seal Kit: We can supply both Parker and NOK seal kit which are the most famous brands in the business line.
|
1.Inner is stretch film, outside is export wooden case or as customer's request.
2.The standard free spare parts: two Chisels, twohoses, one set of repair tools with tool box,one Nitrogen bottle, one Nitrogen.
3.Other accessories are shown below: |
|
longer warranty period.
✔️Main parts are imported.
✔️The cylinder material is in very good quality.
✔️long maintenance period, it can work at least 800 hours before maintenance.
✔️The service life for wearing parts is extended by 500-1000 hours compared with similar products.
Applications
