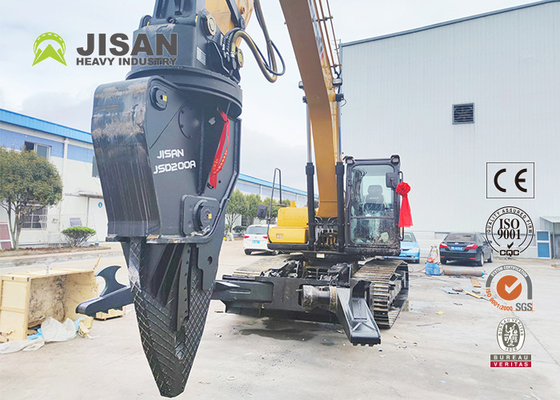

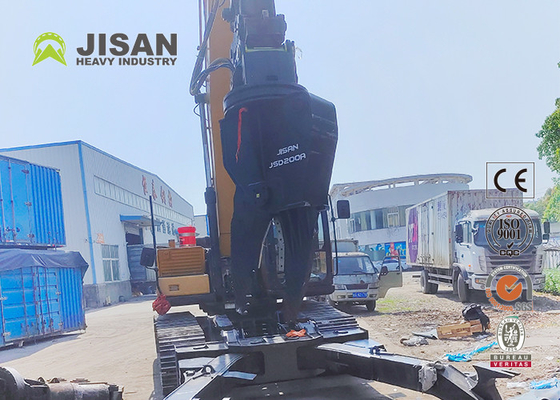

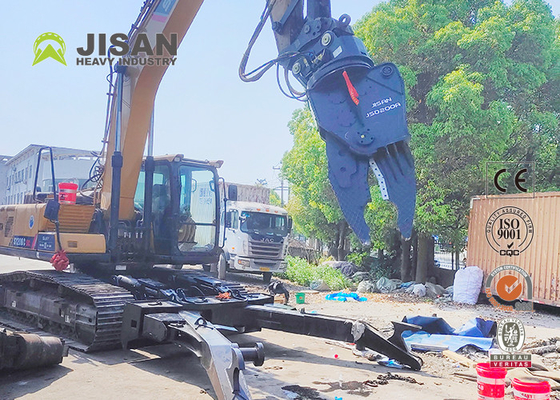

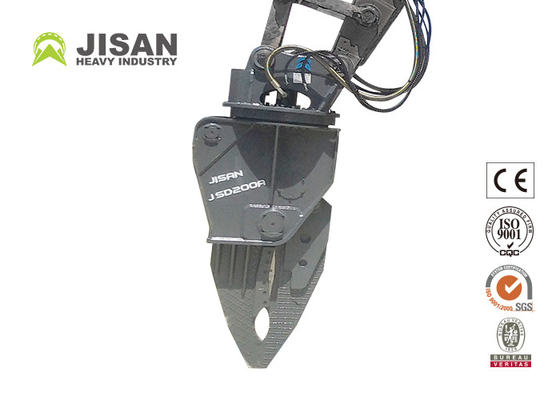

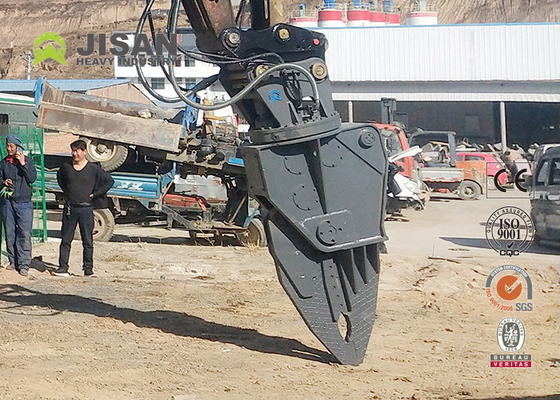

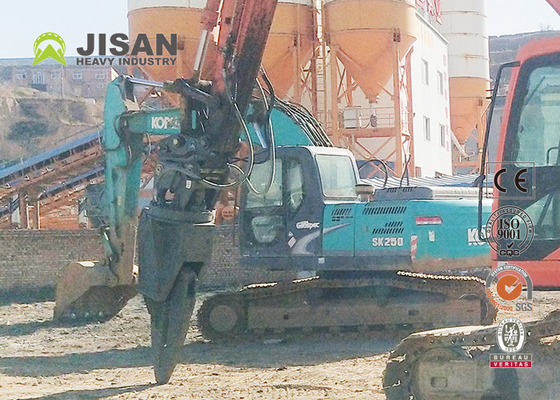

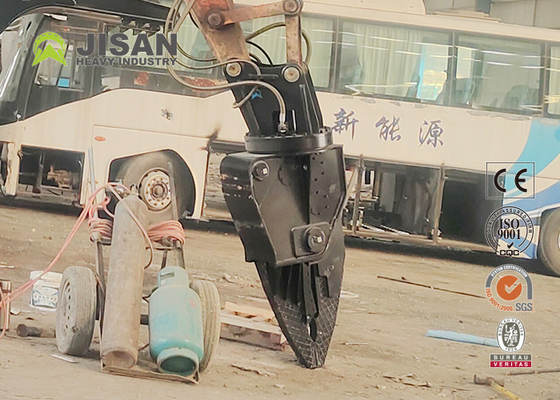

The excavator hydraulic power shear is suitable for various operations, including breaking the steel structure, scrap steel processing, cut iron material,steel, tank and tube etc. Its unique design and strengthed material ensure the efficient operation. The cutting force is more powerful compared to ordinary hydraulic shear performance.
Features
1. 360 degree hydraulic rotation, increase working efficiency
2. Speed Valve installed, reduces cycle time
3. Easy to replace the blade, reduces machine downtime
4. Made from high-grade steel to ensure maximum strength of tool and the best wear resistance
5. Use for cutting iron material and steel structure
6. Can be customized suit for different working sites
7 Suit for all brands of excavator
Parameter
Item/Model
Unit
JSA80
JSA160
JSA230
JSC200
JSE260
suitable Excavator
Ton
6-10
9-16
18-25
22-36
18-25
Weight
Kg
450
900
1600
1600
1600
Opening
mm
500
650
850
650
720
Length
mm
1690
2110
2530
2400
2390
Width
mm
890
1115
1430
1175
1050
Blade Length
mm
150*2
185*2
230*2
520
600
Shear Force
ton
150
160
208
140
170
Pressure
bar
220
220
320
320
320
Flow
L/min
120
180
200
200
200
Rotating Motor Pressure
bar
100
100
100
100
100
Rotating Motor Flow
L/min
20-30
20-30
20-30
20-30
20-30
Rotation Speed
r/min
10-12
10-12
10-12
10-12
10-12

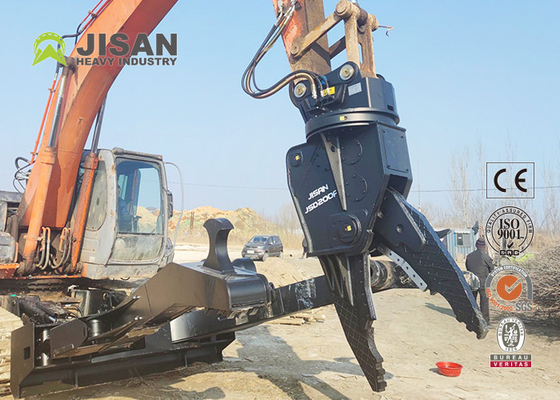

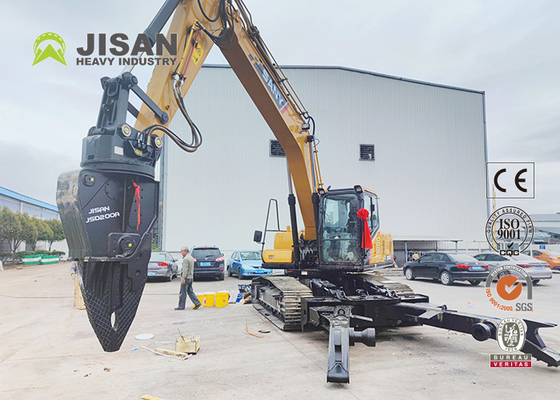

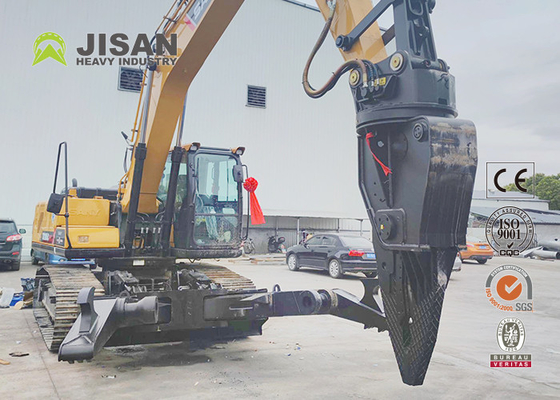

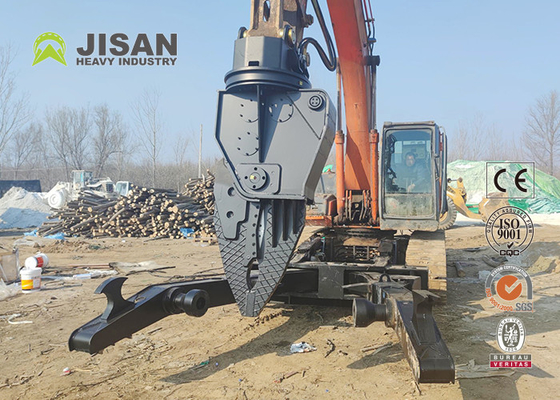

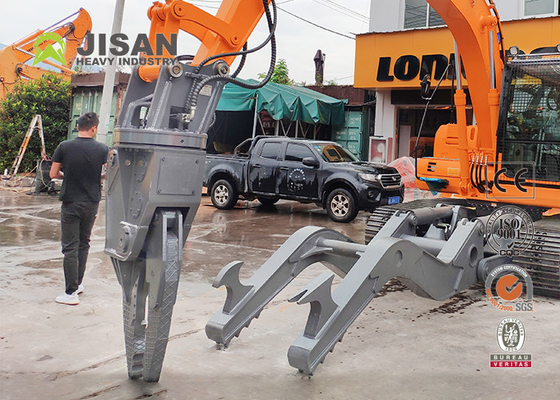

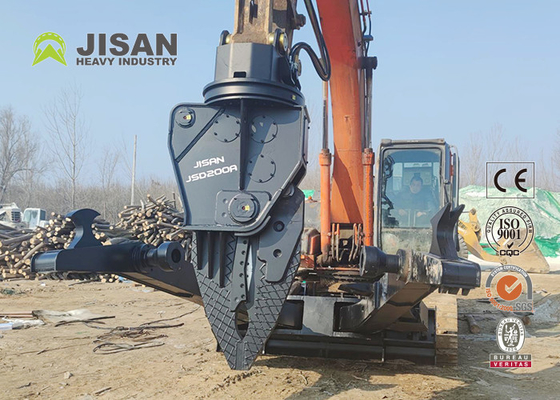

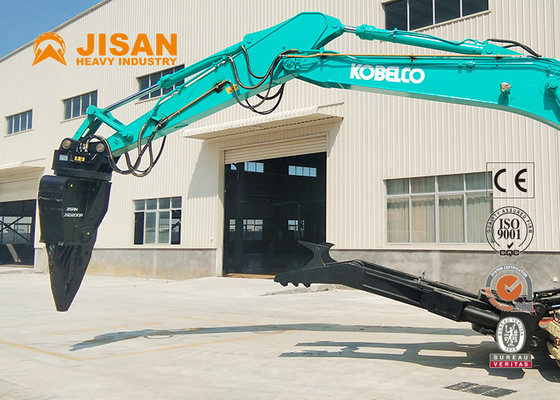

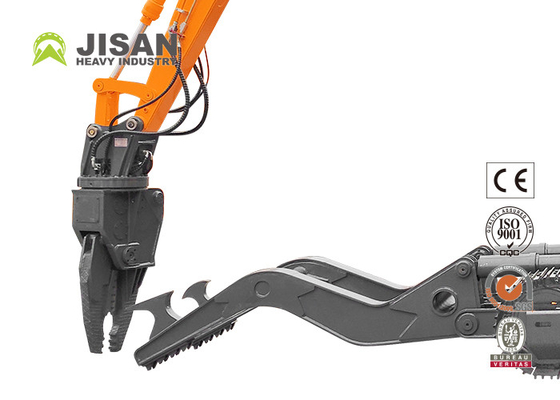

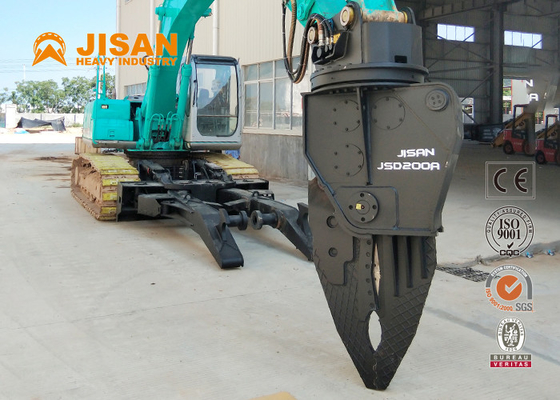

Special Clamp Arm
Automobile dismantling machine is high strength of unibody structure, is equipped with special clamp arm, can be effectively fixed and fasten scrapped automobiles. Multi-function dismantling machine equipped with double clamp arm, can performance up and down or so action, unique handle grip and clamp teeth design, can clamp the dismantling objective tightly, remove material while cut off with rotating. Automobile dismantling machine equipped with single acting clamp arm, performance up-down movement, make the operation more simple. All equipped with wire and feeder, innovative design helps to improve the working efficiency.
Wire extractor
The clamp arm is equipped with claw type wire extractor, suitable for loading-unloading wiring harness.
Kick-out device
Equipped with a kick-out device for easy bending of strip material.
Spherical handle
Clamp dismantling components, can turn dismantled objective to the front and rear.
Clamp teeth
Using strong clamping force, it can also cut off and disassemble components.
Item/Model
Unit
JSCA15D
JSCA20D
JSCA15S
JSCA20S
Suitable Excavator
ton
9-16
17-25
9-16
17-25
Weight
kg
2800
3200
2100
2800
Max Jaw Height
mm
3800
3600
-
-
Up and Down Height
mm
2200
2600
2000
3000
Pressure
bar
250
280
250
280
Flow
L/min
220
220
120
120
Product Inspection
1.Every Product will pass through ring upon ring of quality inspection before delivery to our customer.
2.We will do impact test for every product before delivery.

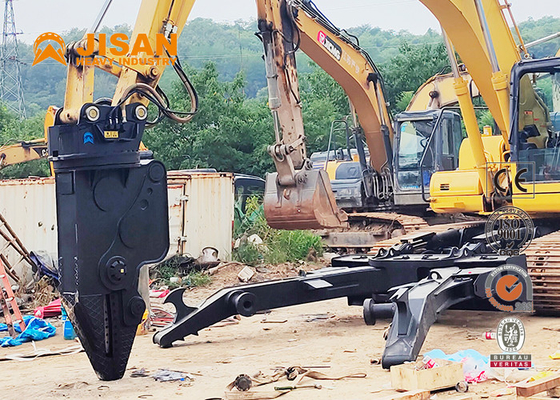

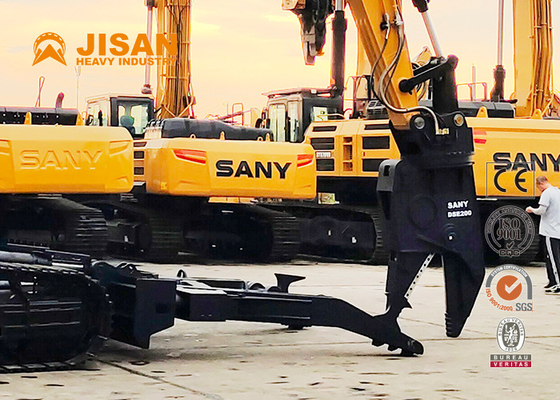

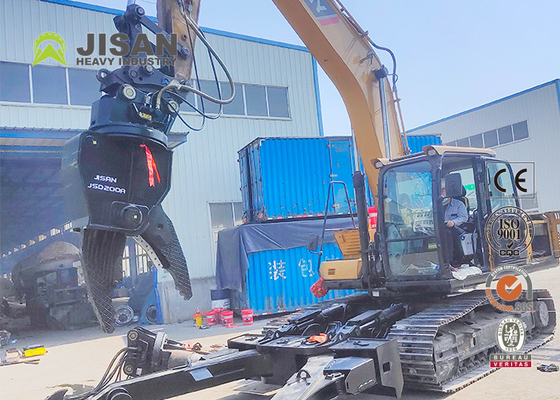

Working Scene
Widely used for scrap automobile handling and other scrap recycle.

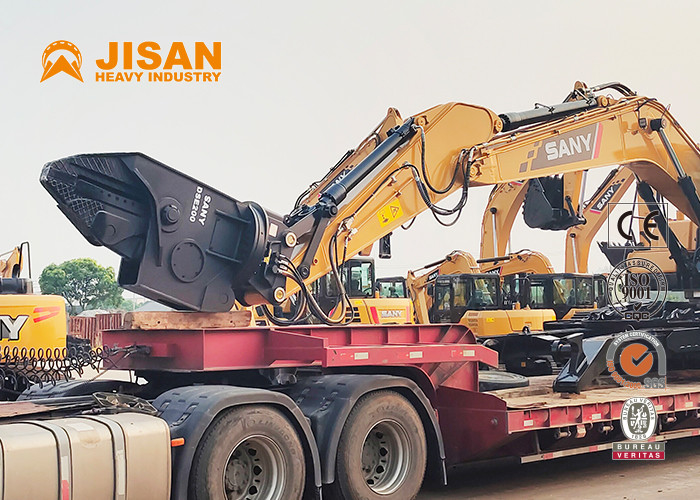

Packing & Delivery
Package
Inner is stretch film, outside is export wooden case or as customer’s request
Delivery
1. Delivery time: Usually 5-7days (1-5sets) after down payment.
2. We can arrange ocean or air transportation according to your request from any port of China.
Company Introduction
Jisan Heavy Industry Ltd. is a leading manufacturer of hydraulic breaker and attachments, widely used in the construction, demolition, mining industries and special project. At present, the capacities of research and development, and manufacturing and the level of quality control stand at the forefront of the industry regarding comprehensive strength.
After nearly ten years of development, we process a professional and experienced technical research team, We have over 300 employees, includes over 40 engineers, production workshop cover 30,000 square meters. With advanced testing equipments, leading R&D capability, and LPS production line, the company has passed authentication of BV, SGS, and CE certification. Quality is the life of enterprise! Grasp the quality source in all the details.
