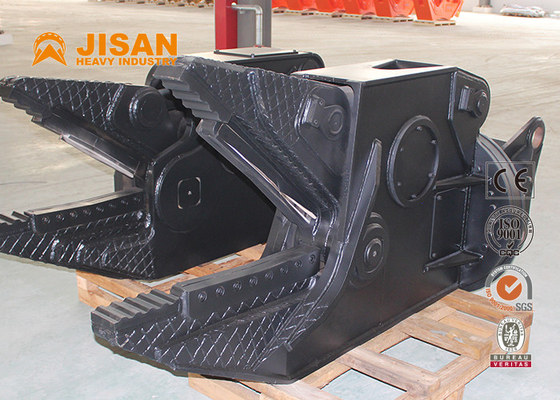

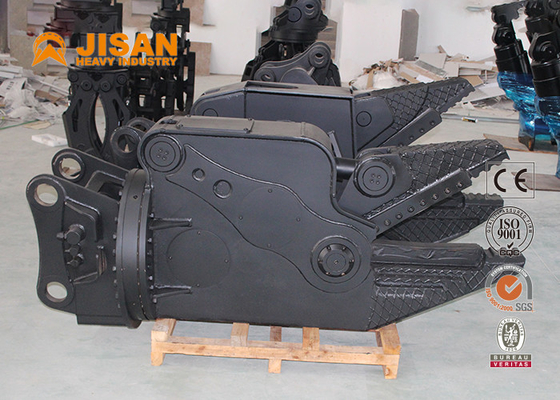

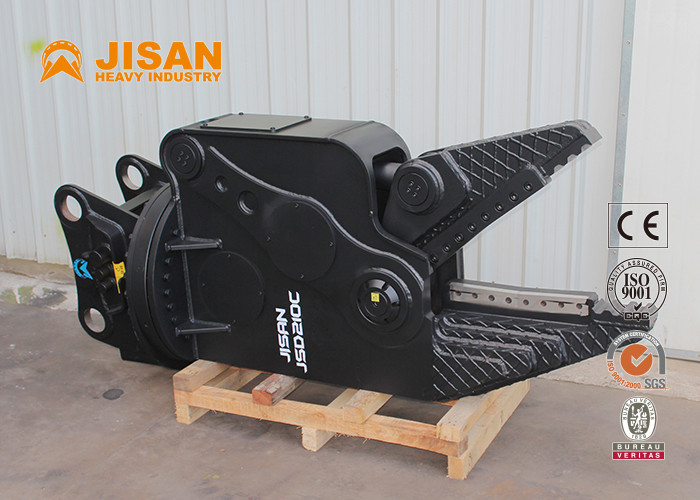

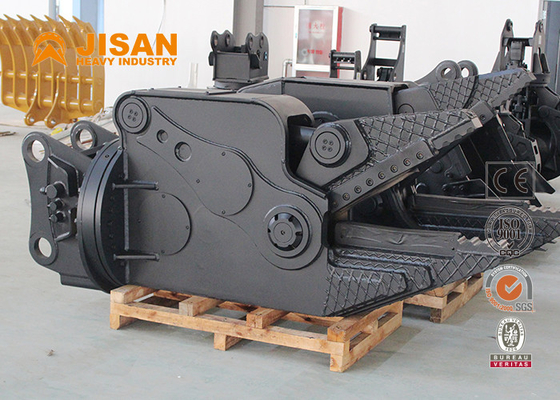

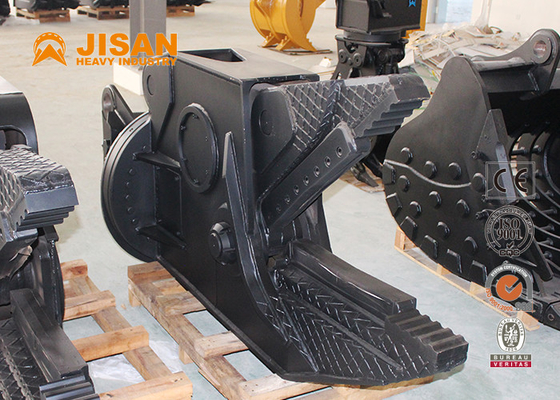

20ton 30ton Excavator Scrapped Car Dismantled Machine Hardox Steel Hydraulic Shear

20ton 30ton Excavator Scrapped Car Dismantled Machine Hardox Steel Hydraulic Shear For Sale

jisan hydraulic shear a car dismantling 2022.pdf



jisan hydraulic shear c car dismantling 2022.pdf



jisan hydraulic shear e car dismantling 2022.pdf

Excavator car dismantling machine can dismantle 60 vehicles in the same time a manual worker would take to dismantle 15.

Features

1. 360 degree hydraulic rotation, increase working efficiency
2. Speed Valve installed, reduces cycle time
3. Easy to replace the blade, reduces machine downtime
4. Made from high-grade steel to ensure maximum strength of tool and the best wear resistance
5. Use for cutting iron material and steel structure
6. Can be customized suit for different working sites
7 Suit for all brands of excavator

































































Parameter































































































































Hydraulic Shear A (Car Dismantling)
For fine cutting, tearing, and micro-operation operations.
Hydraulic Shear C (Car Dismantling)
For extensive cutting, tearing, and twisting operations.
Hydraulic Shear E (Car Dismantling)
For the cutting, tearing, and twisting operations of materials in high-strength and complex environments.































































































































Item/Model		Unit	JSA80	JSA160	JSA230	JSC200	JSE260
suitable Excavator		Ton	6-10	9-16	18-25	22-36	18-25
Weight		Kg	450	900	1600	1600	1600
Opening		mm	500	650	850	650	720
Length		mm	1690	2110	2530	2400	2390
Width		mm	890	1115	1430	1175	1050
Blade Length		mm	150*2	185*2	230*2	520	600
Shear Force		ton	150	160	208	140	170
Pressure		bar	220	220	320	320	320
Flow		L/min	120	180	200	200	200
Rotating Motor Pressure		bar	100	100	100	100	100
Rotating Motor Flow		L/min	20-30	20-30	20-30	20-30	20-30
Rotation Speed		r/min	10-12	10-12	10-12	10-12	10-12

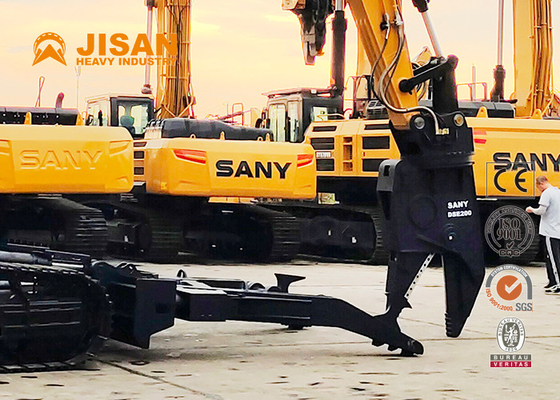

Special Clamp Arm































































Automobile dismantling machine is high strength of unibody structure, is equipped with special clamp arm, can be effectively fixed and fasten scrapped automobiles. Multi-function dismantling machine equipped with double clamp arm, can performance up and down or so action, unique handle grip and clamp teeth design, can clamp the dismantling objective tightly, remove material while cut off with rotating. Automobile dismantling machine equipped with single acting clamp arm, performance up-down movement, make the operation more simple. All equipped with wire and feeder, innovative design helps to improve the working efficiency.































































Wire extractor The clamp arm is equipped with claw type wire extractor, suitable for loading-unloading wiring harness.	Kick-out device Equipped with a kick-out device for easy bending of strip material.	Spherical handle Clamp dismantling components, can turn dismantled objective to the front and rear.	Clamp teeth Using strong clamping force, it can also cut off and disassemble components.





























































































































Item/Model	Unit	JSCA15D	JSCA20D	JSCA15S	JSCA20S
Suitable Excavator	ton	9-16	17-25	9-16	17-25
Weight	kg	2800	3200	2100	2800
Max Jaw Height	mm	3800	3600	-	-
Up and Down Height	mm	2200	2600	2000	3000
Pressure	bar	250	280	250	280
Flow	L/min	220	220	120	120































































Product Inspection

1. Every Product will pass through ring upon ring of quality inspection before delivery to our customer.
2. We will do impact test for every product before delivery.

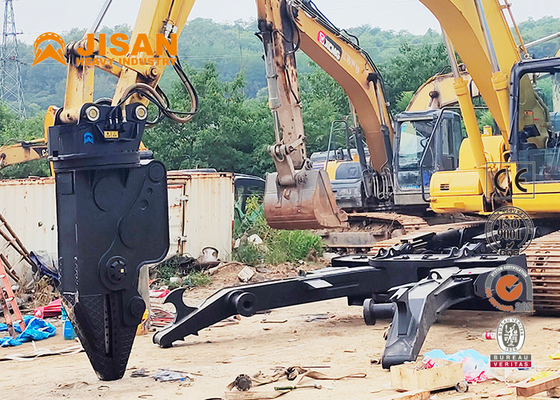

Working Scene

Widely used for scrap automobile handling and other scrap recycle.

Packing & Delivery

Package
Inner is stretch film, outside is export wooden case or as customer’s request
Delivery
1. Delivery time: Usually 5-7days (1-5sets) after down payment.
2. We can arrange ocean or air transportation according to your request from any port of China.

Company Introduction

Jisan Heavy Industry Ltd. is a leading manufacturer of hydraulic breaker and attachments, widely used in the construction, demolition, mining industries and special project. At present, the capacities of research and development, and manufacturing and the level of quality control stand at the forefront of the industry regarding comprehensive strength.
After nearly ten years of development, we process a professional and experienced technical research team, We have over 300 employees, includes over 40 engineers, production workshop cover 30,000 square meters. With advanced testing equipments, leading R&D capability, and LPS production line, the company has passed authentication of BV, SGS, and CE certification. Quality is the life of enterprise! Grasp the quality source in all the details.
