Korean Technology Hydraulic Breaker Hammer for 19-26 Ton Excavator with 160-180 kg/cm2 Pressure and 130-170 l/min Flow

Large Image : Korean Technology Hydraulic Breaker Hammer for 19-26 Ton Excavator with 160-180 kg/cm2 Pressure and 130-170 l/min Flow

Product Details:

Place of Origin:	Shandong, China
Brand Name:	JISAN
Certification:	CE SGS
Model Number:	JSB1900

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Weight:	2050 Kg	Suitable Excavator:	19-26 Ton
Length:	2860 Mm	Rod Diameter:	140 Mm
Pressure:	160-180 Kg/cm2	Flow:	130-170 L/min
Rate:	400-600 Bpm	Hose Size:	1 Inch
Chisel Diameter:	140 Mm	Core Components:	Engine, Bearing
Operating Weight:	50kg To 10,000kg	Hydraulic Oil Temp:	30~40℃ (86~105°F)
Warm-up Time:	5 To 10 Minutes	Nitrogen Bottle:	Included
Repair Tools:	1 Set With Tool Box
Highlight:	19-26 Ton Excavator Hydraulic Breaker , 160-180 kg/cm2 Pressure Hydraulic Hammer , 130-170 l/min Flow Rock Breaker

Montabert Korean Technology Hydraulic Breaker Post Driving Cups Hammer Lock Pins for Excavator

Product Parameters

Item/Model	Weight (kg)	Length (mm)	Pressure (bar)	Flow (lpm)	Rate (bmp)	Hose (inch)	Chisel (mm)	Suit (ton)
JSB100	100	1000	90-120	15-25	900-1400	1/2	40	0.8-2.0
JSB200	167	1300	90-120	20-40	700-1200	1/2	45	1.2-3.0
JSB300	194	1400	90-120	25-50	600-1100	1/2	53	2.5-4.5
JSB400	363	1700	110-140	40-70	500-900	1/2	68/70	4-7
JSB600	450	1750	110-160	50-90	500-800	1/2	75	6-9
JSB800	730	2100	120-170	60-100	400-700	3/4	85	7-14
JSB900	970	2400	150-170	80-120	400-700	3/4	100	11-16
JSB1600	1950	2700	160-180	120-160	400-700	1	135	19-26
JSB1900	2050	2860	160-180	130-170	400-600	1	140	19-26
JSB3500	3000	3100	160-180	170-220	250-400	1	155	28-40
JSB4500	3300	3286	160-180	200-300	250-350	1 ¼	165	36-45
JSB5000	4250	3800	160-180	210-290	200-350	1 ¼	175	40-55
JSB5000	4900	3700	180-220	220-300	200-250	1 ¼	185	50-60
JSB6000	5400	4200	200-240	230-320	150-200	1 ¼	195	55-65
JSB6500	7400	4300	200-240	320-490	150-200	1 ¼	205	65-100

Feature Details

Excavator hydraulic breaker is one of the most widely used front-end equipment accessories for excavators. Our hydraulic breakers feature high strength, high power, compact size, and user-friendly design. These breakers are essential tools for:

Concrete breaking and demolition
Mining and boulder breaking
Bridge repair and construction
Earthquake rescue operations
Reinforced concrete separation
Trenching and foundation works
Asphalt cutting

Our hydraulic breakers are suitable for carriers with operating weights ranging from 50kg to over 10,000kg. Advanced features include self-lubricating systems, sound/vibration damping, automatic rock hardness adjustment, and energy recovery technology.

Precautions for Safe Operation

Apply proper positioning for effective breaking force
Avoid excessive positioning that may cause machine instability
Prevent vibration transmission to machine tracks
Maintain vertical hammering surface for optimal performance
Never use breaker rod to move rocks (use stone claws instead)
Avoid sweeping debris with the breaker
Do not operate when components are submerged in water/mud
Prevent the breaker from falling onto rocks
Avoid operating at full cylinder extension/retraction
Never use breaker for lifting operations
Always warm up machine before operation
Stop operation if hoses vibrate abnormally
Avoid blank hammering (no-contact operation)
Operate at proper engine speed

Our Advantages

JISAN HEAVY INDUSTRY LTD. is a leading hydraulic breaker manufacturer with 12 years of experience in R&D and production. Our products are exported worldwide, including to India, Saudi Arabia, South America, Australia, New Zealand, Southeast Asia, USA, Europe, and South Africa.

Key Features:

Korea-made cylinder for superior quality
NOK oil seals with durability design
Low noise operation
Full-closed housing for maximum protection
Powerful impact performance
Extended service life

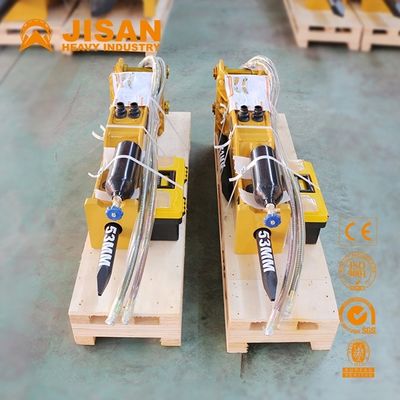

Product Packaging

Standard packaging includes stretch film inner wrapping with export wooden case outer protection. Package includes:

Two chisels
Two hoses
One set of repair tools with tool box
One nitrogen bottle
Complete nitrogen charging equipment

How to choose breaker model, please click here.

Certifications

JISAN holds various patent certificates and has won recognition from clients worldwide at international exhibitions.
