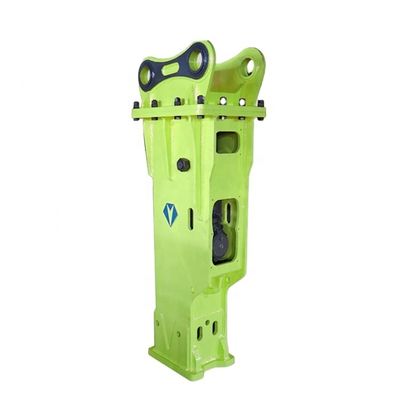

NPK GH15 Hydraulic Breaker Rock Hammer with 12 Months Warranty High Durability and Best Quality for 19-26 Ton Excavators

Large Image : NPK GH15 Hydraulic Breaker Rock Hammer with 12 Months Warranty High Durability and Best Quality for 19-26 Ton Excavators

Product Details:

Place of Origin:	Shandong, China
Brand Name:	JISAN
Model Number:	JSB1900

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Weight:	2050 Kg	Suitable Excavator:	19-26 Ton
Rod Diameter:	140mm	Type:	Side/box/silence Type
Length:	2695 Mm	Pressure:	160-180 Kg/cm2
Flow Rate:	120-160 L/min	Impact Rate:	400-700 Bpm
Hose Size:	1 Inch	Chisel Size:	135 Mm
Material:	Heavy Duty Wear Resistant Steel	Impact System:	Hydraulic + Nitrogen
Heat Treatment:	Enhanced Resistance	Oil Seal:	NOK
Cylinder Origin:	Korea Made
Highlight:	12 Months Warranty Hydraulic Breaker , High Durability Rock Hammer , Best Quality Hydraulic Rock Breaker

NPK GH15 Hydraulic Breaker, Rock Hammer for Excavator

JISAN Hydraulic Breaker is a high-performance rock hammer designed for excavators, offering durability and efficiency in demanding applications.

Hydraulic Breaker Types

Silenced Hydraulic Breaker

Low noise operation with energy-saving design for environmental protection.

Side Type Hydraulic Breaker

Versatile application including rock breaking, road paving, and building demolition.

Top Type Hydraulic Breaker

Designed for special operations requiring large elevation angles.

Specifications

ITEM/MODEL	WEIGHT(kg)	LENGTH(mm)	PRESSURE(kg/cm2)	FLUX(L/min)	RATE(bmp)	HOSE(inch)	CHISEL(mm)	SUIT(ton)
JSB200T	100/120	1100	90-120	15-25	700-1200	1/2	45/53	1.2-3.0
JSB400T	390	1347	110-140	25-45	500-900	1/2	68/70	3.0-5.5
JSB600T	421	1528	110-160	30-45	500-800	1/2	75	4.0-7.0
JSB800T	577	1920	120-170	45-85	400-700	3/4	85	7.0-14
JSB900T	973	2260	150-170	80-120	400-700	3/4	100	11-16
JSB1600T	1955	2695	160-180	120-160	400-700	1	135	19-26
JSB1900T	1989	2810	160-180	130-170	400-600	1	140	19-26
JSB3500T	2950	3152	160-180	170-220	250-400	1	155	28-40
JSB4500T	3160	3310	160-180	200-300	250-350	1¼	165	36-45
JSB5000T	4210	3400	160-180	210-290	200-350	1¼	175	40-55
JSB5500T	4720	3400	180-220	220-300	200-250	1¼	185	50-60
JSB6500T	4910	3420	180-220	230-320	180-200	1¼	195	55-65
JSB7000T	6100	3700	190-230	360-450	120-200	1¼	210	65-100

How to choose breaker model, please click here.

Feature Details

Selected raw material - high quality heavy duty wear resistant steel
Leading heat treatment technology enhances heat resistance and abrasion resistance
Adjustable flow from excavator power source to control impact force and beat frequency
High-quality, durable wear parts with longer lifespan and easy maintenance
Strong "hydraulic + nitrogen" impact system for increased stability
Advanced manufacturing facilities and technology imported from South Korea
High energy and impact frequency with optimized hydraulic unit

Applications

If you are interested, please click here.

Packing & Shipping

1. Inner is stretch film, outside is export wooden case or as customer's request.

2. The standard free spare parts: two Chisels, two hoses, one set of repair tools with tool box, one Nitrogen bottle, one Nitrogen pressure gauge and one brochure.

Recommend Products

Jisan hydraulic hammer 140 mm silence type box type breaker

Excavator breaker, rock breaker, excavator jack hammer for PC200

Excavator hydraulic shears for cutting Rebar

Why Choose Jisan Heavy Industry

One of the largest and most professional hydraulic breaker manufacturers with 11 years experience
Products exported worldwide including India, Saudi Arabia, South America, Australia, and more
Korea-made cylinder with NOK oil seal and durability design
Low noise operation with full-closed housing protection
Strong impact system with longer lifetime of usage
