20 Ton Hydraulic Breaker with 12 Months Warranty for Excavator Compatible Rock Hammer

Large Image : 20 Ton Hydraulic Breaker with 12 Months Warranty for Excavator Compatible Rock Hammer

Product Details:

Place of Origin:	Shandong, China
Brand Name:	JISAN
Certification:	CE
Model Number:	custom made

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$9,852

Contact Now

Detailed Product Description

Weight:	1840 Kg	Suitable Excavator:	1-100 Ton
Rod Diameter:	40-175mm	Hosepipe Diameter:	0.5-1.25 Inch
Impact Rate:	250-700 Bpm	Core Components:	Pressure Vessel
Length:	Custom Made	Pressure:	90-220 Bar
Flow:	15-320 Lpm	Chisel Diameter:	40-205mm
Operating Weight:	50kg-10,000kg	Engine Speed:	Specified
Oil Seal:	NOK	Cylinder Origin:	Korea
Housing Type:	Full-closed
Highlight:	12 Months Warranty Hydraulic Breaker , 20 Ton Rock Breaker , Excavator Compatible Hydraulic Hammer

20 Ton Hydraulic Breaker Hammer for Excavators

Product Specifications

Item/Model	Weight (kg)	Length (mm)	Pressure (bar)	Flow (lpm)	Rate (bmp)	Hose (inch)	Chisel (mm)	Suit (ton)
JSB100	100	1000	90-120	15-25	900-1400	1/2	40	0.8-2.0
JSB200	167	1300	90-120	20-40	700-1200	1/2	45	1.2-3.0
JSB300	194	1400	90-120	25-50	600-1100	1/2	53	2.5-4.5
JSB400	363	1700	110-140	40-70	500-900	1/2	68/70	4-7
JSB600	450	1750	110-160	50-90	500-800	1/2	75	6-9
JSB800	730	2100	120-170	60-100	400-700	3/4	85	7-14
JSB900	970	2400	150-170	80-120	400-700	3/4	100	11-16
JSB1600	1950	2700	160-180	120-160	400-700	1	135	19-26
JSB1900	2050	2860	160-180	130-170	400-600	1	140	19-26
JSB3500	3000	3100	160-180	170-220	250-400	1	155	28-40
JSB4500	3300	3286	160-180	200-300	250-350	1 ¼	165	36-45
JSB5000	4250	3800	160-180	210-290	200-350	1 ¼	175	40-55
JSB5000	4900	3700	180-220	220-300	200-250	1 ¼	185	50-60
JSB6000	5400	4200	200-240	230-320	150-200	1 ¼	195	55-65
JSB6500	7400	4300	200-240	320-490	150-200	1 ¼	205	65-100

Product Features

The excavator hydraulic breaker is a high-performance front-end attachment designed for heavy-duty applications. This robust tool features:

High strength construction for maximum durability
Powerful impact force for efficient rock breaking
Compact design for improved maneuverability
Versatile applications including concrete demolition, mining, and rescue operations
Advanced features like self-lubricating systems and vibration damping
Compatible with carriers from 50kg to over 10,000kg

Safety Operation Guidelines

Maintain proper positioning for effective breaking force
Avoid excessive positioning that may cause machine instability
Prevent transmission of vibrations to machine tracks
Align boom force direction with the rod for optimal performance
Never use breaker rod to move rocks - use designated stone claws
Avoid sweeping debris with the breaker to prevent damage
Do not operate when components are submerged in water/mud
Prevent breaker from falling onto rocks
Avoid operating at full cylinder extension/retraction
Never use breaker for lifting operations

Technical Advantages

Korea-made cylinder for superior quality
NOK oil seals with durability design
Low-noise operation with full-closed housing protection
Powerful impact force for efficient breaking
Extended service life through robust construction

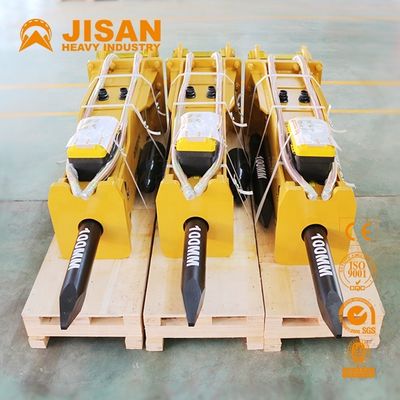

Packaging Details

Standard packaging includes stretch film inner wrapping with export wooden case exterior. Package includes:

Two chisels
Two hoses
Complete repair tool set with toolbox
Nitrogen bottle
