Hydraulic Rock Breaker for 19-26 Ton Excavator with 400-600 bpm Rate and 140 mm Chisel

Large Image : Hydraulic Rock Breaker for 19-26 Ton Excavator with 400-600 bpm Rate and 140 mm Chisel

Product Details:

Place of Origin:	Shandong, China
Brand Name:	JISAN
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$7,600-7,900

Contact Now

Detailed Product Description

Weight:	1898 Kg, 1900 Kg	Length:	2810 Mm
Suitable Excavator:	19-26 Ton	Rate:	400-600 Bpm
Chisel Diameter:	140 Mm	Material:	20 Crmo For Main Body
Pressure Range:	160-180 Bar	Flow Range:	130-170 Lpm
Hose Size:	1 Inch	Impact Rate:	400-600 Bpm
Operating Weight:	50kg To Over 10,000kg	Oil Seal Type:	NOK Oil Seal
Housing Type:	Full-closed Housing	Cylinder Origin:	Korea Made Cylinder
Chisel Quantity:	Two Chisels Included
Highlight:	19-26 Ton Excavator Hydraulic Rock Breaker , 400-600 bpm Hydraulic Hammer , 140 mm Chisel Excavator Hydraulic Breaker

Excavator Hydraulic Rock Breaker with Engine Core Component Hydraulic Hammer

Product Parameters

Item/Model	Weight (kg)	Length (mm)	Pressure (bar)	Flow (lpm)	Rate (bmp)	Hose (inch)	Chisel (mm)	Suit (ton)
JSB100	100	1000	90-120	15-25	900-1400	1/2	40	0.8-2.0
JSB200	167	1300	90-120	20-40	700-1200	1/2	45	1.2-3.0
JSB300	194	1400	90-120	25-50	600-1100	1/2	53	2.5-4.5

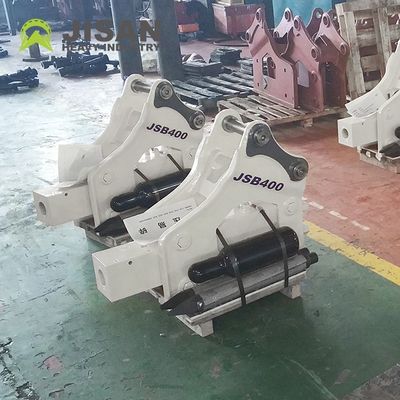

JSB400	363	1700	110-140	40-70	500-900	1/2	68/70	4-7
JSB600	450	1750	110-160	50-90	500-800	1/2	75	6-9
JSB800	730	2100	120-170	60-100	400-700	3/4	85	7-14
JSB900	970	2400	150-170	80-120	400-700	3/4	100	11-16
JSB1600	1950	2700	160-180	120-160	400-700	1	135	19-26

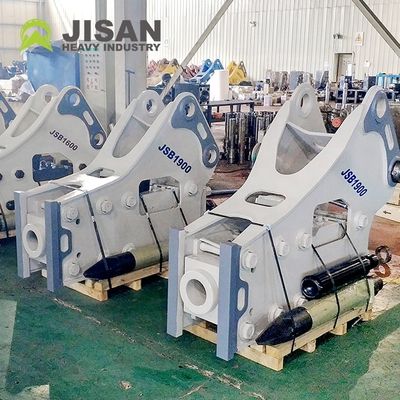

JSB1900	2050	2860	160-180	130-170	400-600	1	140	19-26
JSB3500	3000	3100	160-180	170-220	250-400	1	155	28-40
JSB4500	3300	3286	160-180	200-300	250-350	1 ¼	165	36-45

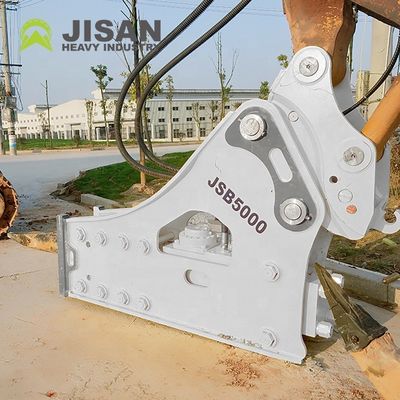

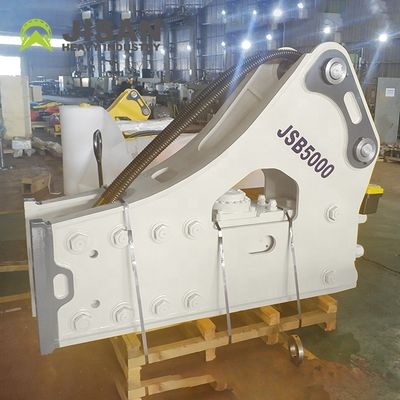

JSB5000	4250	3800	160-180	210-290	200-350	1 ¼	175	40-55
JSB5000	4900	3700	180-220	220-300	200-250	1 ¼	185	50-60
JSB6000	5400	4200	200-240	230-320	150-200	1 ¼	195	55-65
JSB6500	7400	4300	200-240	320-490	150-200	1 ¼	205	65-100

Feature Details

The excavator hydraulic breaker is a versatile front-end equipment attachment for excavators, featuring high strength, powerful performance, compact size, and user-friendly design. This essential tool efficiently breaks concrete, rocks, and other hard materials, making it invaluable for construction demolition, mining operations, bridge repair, and emergency rescue situations.

Our hydraulic breakers are suitable for carriers of all types, with operating weights ranging from 50kg to over 10,000kg. Advanced features include self-lubricating systems, vibration damping technology, automatic rock hardness adjustment, energy recovery systems, and durable construction for extended service life.

Precautions for Safe Operation

Ensure proper positioning for effective breaking force application
Avoid excessive positioning that may cause machine instability
Prevent hammering under tracks to avoid vibration transmission
Maintain vertical hammering surface alignment to prevent tool damage
Never use the breaker rod for moving rocks (use stone claws instead)
Avoid sweeping debris with the breaker to prevent premature wear
Do not operate when components are submerged in water/mud
Prevent the breaker from falling onto rocks to avoid damage
Avoid operating at full cylinder extension/retraction limits
Never use breaker rods for lifting operations
Always warm up the machine before operation, especially in cold conditions
Stop operation if hoses show abnormal vibration
Avoid blank hammering to prevent component wear
Operate at recommended engine speeds for optimal performance

Our Advantages

12+ years experience as professional hydraulic breaker manufacturer
Global exports to India, Saudi Arabia, South America, Australia, and more
Premium components: Korea-made cylinder, NOK oil seals
Low-noise operation with full-closed housing protection
High-impact performance with extended service life

Applications

Ideal for demolition, deconstruction, primary rock excavation, secondary rock breaking, trenching, foundation work, asphalt cutting, and emergency rescue operations.

Product Packaging
