Everdigm EHB03A Breaker, Rock Breaker, Box Type Breaker

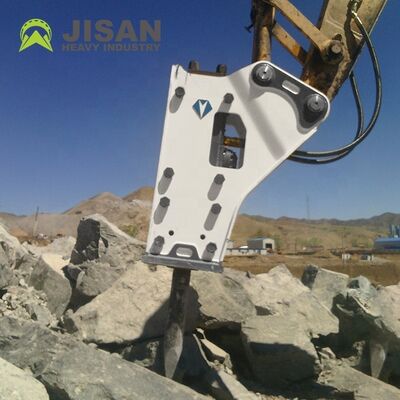

Large Image : Everdigm EHB03A Breaker, Rock Breaker, Box Type Breaker

Product Details:

Place of Origin:	Shandong, China
Brand Name:	JISAN
Model Number:	JSB

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$5,300-5,600

Contact Now

Detailed Product Description

Weight:	1898 Kg	Length:	2810 Mm
Rod Diameters:	140mm	Suitable Excavator:	19-26 Tons
Type:	Side/box/silence Type	Pressure Range:	160-180 Bar
Flow Rate:	130-170 Lpm	Impact Rate:	400-600 Bpm
Hose Size:	1 Inch	Chisel Size:	140mm
Core Components:	Engine	Operating Weight:	19-26 Tons
Material:	Full-closed Housing	Oil Seal:	NOK Oil Seal
Cylinder Origin:	Korea Made
Highlight:	Everdigm hydraulic rock breaker , box type rock breaker , EHB03A hydraulic breaker

Everdigm EHB03A Breaker - Rock Breaker (Box Type)

Product Specifications

Item/Model	Weight (kg)	Length (mm)	Pressure (bar)	Flow (lpm)	Rate (bmp)	Hose (inch)	Chisel (mm)	Suit (ton)
JSB100	100	1000	90-120	15-25	900-1400	1/2	40	0.8-2.0
JSB200	167	1300	90-120	20-40	700-1200	1/2	45	1.2-3.0
JSB300	194	1400	90-120	25-50	600-1100	1/2	53	2.5-4.5
JSB400	363	1700	110-140	40-70	500-900	1/2	68/70	4-7
JSB600	450	1750	110-160	50-90	500-800	1/2	75	6-9
JSB800	730	2100	120-170	60-100	400-700	3/4	85	7-14
JSB900	970	2400	150-170	80-120	400-700	3/4	100	11-16
JSB1600	1950	2700	160-180	120-160	400-700	1	135	19-26
JSB1900	2050	2860	160-180	130-170	400-600	1	140	19-26
JSB3500	3000	3100	160-180	170-220	250-400	1	155	28-40
JSB4500	3300	3286	160-180	200-300	250-350	1 ¼	165	36-45
JSB5000	4250	3800	160-180	210-290	200-350	1 ¼	175	40-55
JSB5000	4900	3700	180-220	220-300	200-250	1 ¼	185	50-60
JSB6000	5400	4200	200-240	230-320	150-200	1 ¼	195	55-65
JSB6500	7400	4300	200-240	320-490	150-200	1 ¼	205	65-100

Product Features

The excavator hydraulic breaker is a versatile front-end equipment accessory with wide applications. Designed with high strength, powerful performance, compact size, and user-friendly features, it excels in concrete breaking, mining operations, boulder demolition, bridge repair, and emergency rescue situations.

Ideal for demolition and rescue operations, this hydraulic breaker serves fire departments, traffic police units, industrial/mining enterprises, and construction teams. Its applications include reinforced concrete separation, demolition projects, primary rock excavation, secondary rock breaking, trenching, foundation work, and asphalt cutting.

Our hydraulic breakers are compatible with various carriers, ranging from 50kg to over 10,000kg operating weights. Advanced features include self-lubricating systems, sound/vibration damping technology, automatic rock hardness adjustment, energy recovery mechanisms, and robust construction.

Safety Operation Guidelines

Position the breaker correctly for effective breaking force. Incorrect positioning reduces piston hammering energy.
Avoid excessive positioning that raises the machine's front, which may cause sudden forward tilting upon rock breakage.
Prevent hammering conditions that transmit vibrations to the base machine tracks.
Align boom force with the rod direction and maintain vertical hammering surfaces to prevent rod slippage.
Never use the breaker rod to move rocks - use designated stone claws instead.
Avoid sweeping debris with the breaker to prevent premature housing wear.
Do not operate with submerged components (except rod) - consult for underwater modifications.
Prevent breaker falls onto rocks to avoid damage to both breaker and carrier.
Never operate with carrier cylinders at full extension/retraction limits.
Breaker lifting eyes are for maintenance only - never use for load lifting.

Additional Safety Notes:

Warm up the machine for 5-10 minutes before operation, especially in cold conditions.
Stop operation if hoses vibrate abnormally and contact JISAN dealer.
Avoid blank hammering which accelerates component wear and may void warranties.
Operate at specified engine speeds - excessive RPM increases oil temperature without improving performance.

Company Advantages

12+ years as leading hydraulic breaker manufacturer specializing in R&D and production
Global exports to India, Saudi Arabia, South America, Australia, New Zealand, Southeast Asia, USA, Europe, and South Africa
Premium components: Korea-made cylinders, NOK oil seals with durability design
Low-noise operation with full-closed housing protection
High-impact performance with extended service life
