Jisan Hydraulic Hammer for YUCHAI Excavator

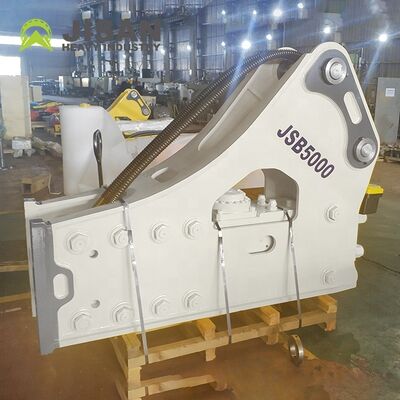

Large Image : Jisan Hydraulic Hammer for YUCHAI Excavator

Product Details:

Place of Origin:	Shandong, China
Brand Name:	JISAN

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$6,200-6,700

Contact Now

Detailed Product Description

Weight:	1898 Kg	Length:	2810 Mm
Suitable Excavator:	19-26 Ton	Rod Diameter:	100mm
Operating Pressure:	160-180 Bar	Flow Rate:	130-170 Lpm
Impact Rate:	400-600 Bmp	Hose Size:	1 Inch
Chisel Diameter:	140mm	Core Components:	Engine, Pressure Vessel
Oil Seal Type:	NOK	Housing Type:	Full-closed
Operating Temperature:	30-40°C	Warm-up Time:	5-10 Minutes
Impact Force:	Strong
Highlight:	YUCHAI excavator hydraulic hammer , hydraulic rock breaker for excavators , Jisan hydraulic hammer with warranty

Jisan Hydraulic Hammer for YUCHAI Excavator

Product Parameters

Item/Model	Weight (kg)	Length (mm)	Pressure (bar)	Flow (lpm)	Rate (bmp)	Hose (inch)	Chisel (mm)	Suit (ton)
JSB100	100	1000	90-120	15-25	900-1400	1/2	40	0.8-2.0
JSB200	167	1300	90-120	20-40	700-1200	1/2	45	1.2-3.0
JSB300	194	1400	90-120	25-50	600-1100	1/2	53	2.5-4.5
JSB400	363	1700	110-140	40-70	500-900	1/2	68/70	4-7
JSB600	450	1750	110-160	50-90	500-800	1/2	75	6-9
JSB800	730	2100	120-170	60-100	400-700	3/4	85	7-14
JSB900	970	2400	150-170	80-120	400-700	3/4	100	11-16
JSB1600	1950	2700	160-180	120-160	400-700	1	135	19-26
JSB1900	2050	2860	160-180	130-170	400-600	1	140	19-26
JSB3500	3000	3100	160-180	170-220	250-400	1	155	28-40
JSB4500	3300	3286	160-180	200-300	250-350	1 ¼	165	36-45
JSB5000	4250	3800	160-180	210-290	200-350	1 ¼	175	40-55
JSB5000	4900	3700	180-220	220-300	200-250	1 ¼	185	50-60
JSB6000	5400	4200	200-240	230-320	150-200	1 ¼	195	55-65
JSB6500	7400	4300	200-240	320-490	150-200	1 ¼	205	65-100

Feature Details

Excavator hydraulic breaker is one of the most widely used front-end equipment accessories for excavators. Our hydraulic breakers feature high strength, powerful performance, compact size, and user-friendly design. These breakers are essential for:

Concrete breaking and mining operations
Boulder breaking and bridge repair
Earthquake rescue and disaster relief operations
Construction demolition and reinforced concrete separation
Trenching, foundation works, and asphalt cutting

Our hydraulic hammers are compatible with any carrier type, with operating weights ranging from 50kg to over 10,000kg. Advanced features include self-lubricating systems, sound/vibration damping, automatic rock hardness adjustment, and energy recovery technology.

Precautions for Safe Operation

Apply proper position for effective breaking force. Incorrect positioning weakens hammering energy.
Avoid excessive positioning that may cause sudden forward tilting when rocks break.
Do not hammer when vibrations may transmit to the base machine tracks.
Align boom force with the rod direction and keep hammering surface as vertical as possible.
Never use the breaker rod to move rocks - use stone claws instead.
Avoid sweeping debris with the breaker to prevent premature wear.
Do not operate when components (except rod) are submerged in water/mud.
Prevent the breaker from falling onto rocks to avoid damage.
Never operate with carrier cylinders at full extension/retraction.
Do not use breaker rods for lifting - lifting eyes are for maintenance only.

Warm-up Procedure: Always warm up the machine for 5-10 minutes (30-40°C) before operation, especially in cold conditions. Begin with light loads after warming hydraulic oil sufficiently.

Important Notes: Stop operation if hoses vibrate abnormally. Avoid blank hammering as it accelerates wear. Operate at specified engine speeds - excessive RPM increases oil temperature without improving performance.
