hydraulic breaker for mini excavator

Large Image : hydraulic breaker for mini excavator

Product Details:

Place of Origin:	Shandong, China
Brand Name:	JISAN
Model Number:	JSB, JSB400

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$6,918.50

Contact Now

Detailed Product Description

Weight:	330 Kg	Length:	1590 Mm
Suitable Excavator:	4-7 Ton	Core Components:	Pressure Vessel
Type:	Hydraulic Breakers	Operating Pressure:	90-120 Bar
Flow Rate:	15-25 Lpm	Impact Rate:	900-1400 Bpm
Hose Size:	1/2 Inch	Chisel Diameter:	40 Mm
Suitable Carrier:	0.8-2.0 Ton	Operating Temperature:	30-40°C
Warm-up Time:	5-10 Minutes	Oil Seal Type:	NOK
Housing Design:	Full-closed
Highlight:	mini excavator hydraulic breaker , hydraulic rock breaker attachment , excavator hydraulic breaker with warranty

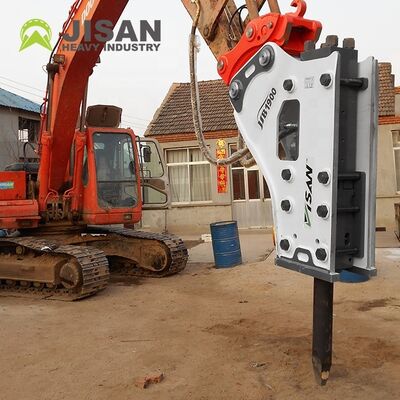

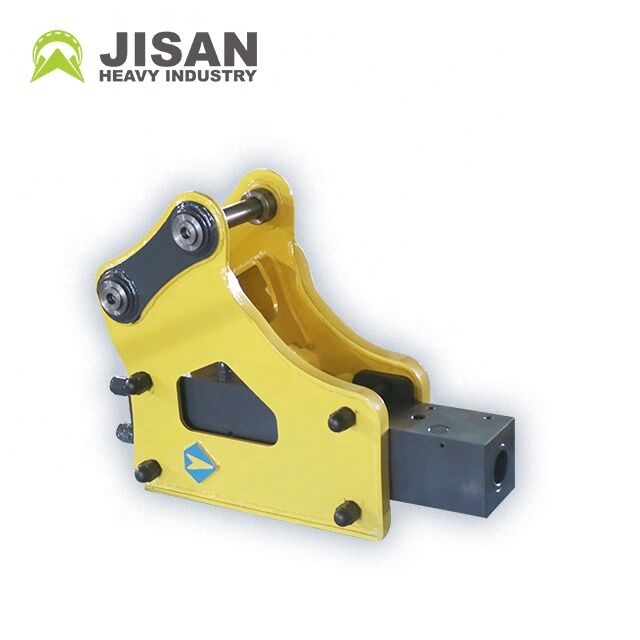

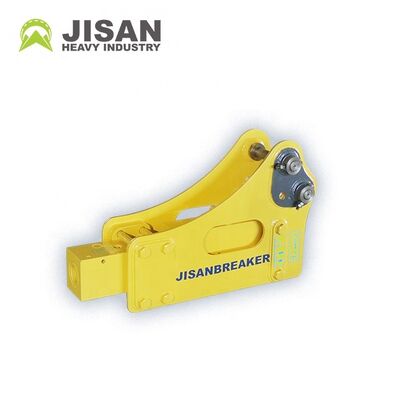

Hydraulic Breaker for Mini Excavator

Product Parameters

Item/Model	Weight (kg)	Length (mm)	Pressure (bar)	Flow (lpm)	Rate (bmp)	Hose (inch)	Chisel (mm)	Suit (ton)
JSB100	100	1000	90-120	15-25	900-1400	1/2	40	0.8-2.0
JSB200	167	1300	90-120	20-40	700-1200	1/2	45	1.2-3.0
JSB300	194	1400	90-120	25-50	600-1100	1/2	53	2.5-4.5
JSB400	363	1700	110-140	40-70	500-900	1/2	68/70	4-7
JSB600	450	1750	110-160	50-90	500-800	1/2	75	6-9
JSB800	730	2100	120-170	60-100	400-700	3/4	85	7-14
JSB900	970	2400	150-170	80-120	400-700	3/4	100	11-16
JSB1600	1950	2700	160-180	120-160	400-700	1	135	19-26
JSB1900	2050	2860	160-180	130-170	400-600	1	140	19-26
JSB3500	3000	3100	160-180	170-220	250-400	1	155	28-40
JSB4500	3300	3286	160-180	200-300	250-350	1 ¼	165	36-45
JSB5000	4250	3800	160-180	210-290	200-350	1 ¼	175	40-55
JSB5000	4900	3700	180-220	220-300	200-250	1 ¼	185	50-60
JSB6000	5400	4200	200-240	230-320	150-200	1 ¼	195	55-65
JSB6500	7400	4300	200-240	320-490	150-200	1 ¼	205	65-100

Feature Details

Excavator hydraulic breaker is one of the most widely used front-end equipment accessories for excavators. Our hydraulic breakers feature high strength, powerful performance, compact size, and ergonomic design. These breakers are essential tools for:

Concrete demolition and rock breaking
Mining operations and quarry work
Bridge repair and construction
Emergency rescue operations
Foundation work and trenching
Asphalt cutting and road work

Our hydraulic breakers are suitable for carriers with operating weights ranging from 50kg to over 10,000kg, featuring advanced technologies including self-lubricating systems, vibration damping, automatic rock hardness adjustment, and energy recovery.

Safety Operation Precautions

Position the breaker correctly for effective breaking force. Incorrect positioning may result in weak hammering energy.
Avoid excessive positioning that could cause the machine to tilt forward when rocks break.
Do not hammer when vibrations may transmit to the carrier's tracks.
Align the boom force with the rod direction and keep the hammering surface as vertical as possible.
Never use the breaker rod to move rocks - use stone claws instead.
Avoid sweeping debris with the breaker to prevent premature wear.
Do not operate the breaker when submerged in water or mud.
Prevent the breaker from falling onto rocks to avoid damage.
Never operate with the carrier's cylinders at full extension or retraction.
Do not use the breaker or rods for lifting purposes.

Additional Safety Notes:

Warm up the machine for 5-10 minutes before operation, especially in cold conditions.
Stop operation if hoses vibrate abnormally and contact your dealer.
Avoid blank hammering (operating without contact) to prevent component damage.
Operate at specified engine speeds - excessive speed increases oil temperature without improving performance.
