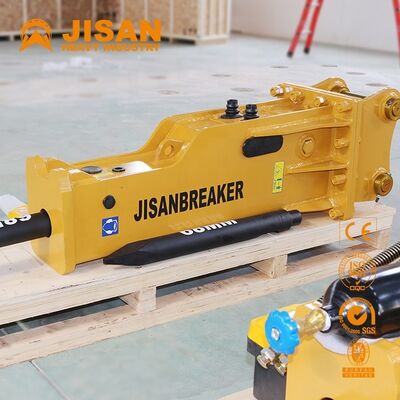

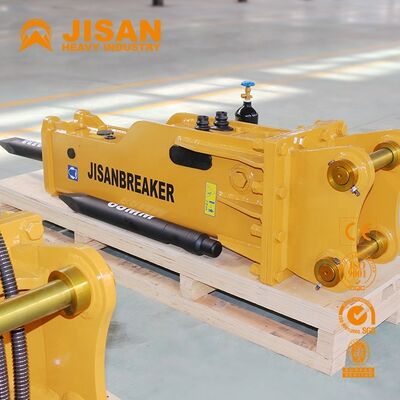

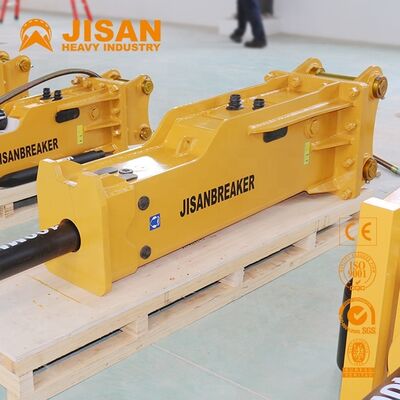

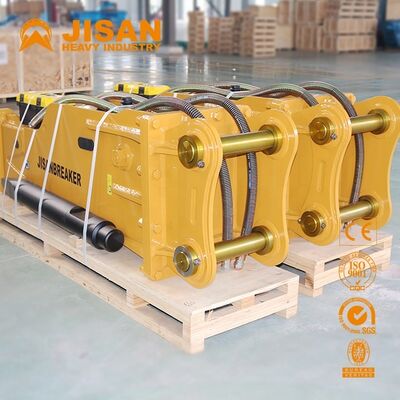

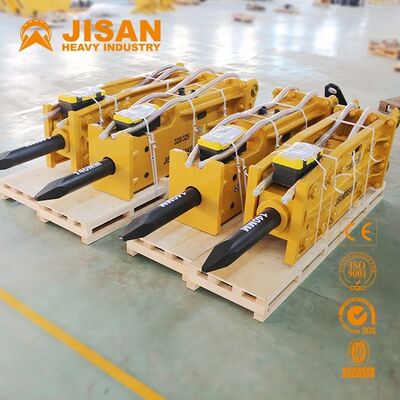

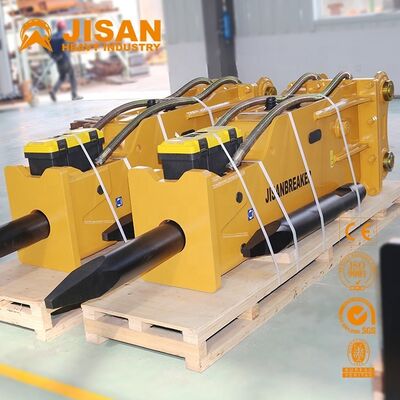

JISAN 20ton Building Machine Excavator Attachment Hydraulic Breaker Hammer with Engine Core High Power

Large Image : JISAN 20ton Building Machine Excavator Attachment Hydraulic Breaker Hammer with Engine Core High Power

Product Details:

Place of Origin:	Shandong, China
Brand Name:	JISAN
Certification:	CE, ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$6,400-6,500

Contact Now

Detailed Product Description

Weight:	1898 Kg	Suitable Excavator:	19-26 Ton
Length:	2810 Mm	Rod Diameters:	140mm
Hose Size:	1inch	Type:	Box Silence Type
Core Components:	Engine	Pressure Range:	160-180 Bar
Flow Rate:	120-160 Lpm	Impact Rate:	400-700 Bmp
Chisel Size:	135mm	Operating Weight:	19-26 Ton
Hydraulic Pressure:	160-180 Bar	Oil Flow:	120-160 Lpm
Impact Frequency:	400-700 Bmp
Highlight:	20ton hydraulic breaker hammer , excavator attachment rock breaker , high power hydraulic hammer

JISAN 20ton Building Machine Excavator Attachment Hydraulic Breaker Hammer with Engine Core High Power

Product Parameters

Item/Model	Weight (kg)	Length (mm)	Pressure (bar)	Flow (lpm)	Rate (bmp)	Hose (inch)	Chisel (mm)	Suit (ton)
JSB100	100	1000	90-120	15-25	900-1400	1/2	40	0.8-2.0
JSB200	167	1300	90-120	20-40	700-1200	1/2	45	1.2-3.0
JSB300	194	1400	90-120	25-50	600-1100	1/2	53	2.5-4.5
JSB400	363	1700	110-140	40-70	500-900	1/2	68/70	4-7
JSB600	450	1750	110-160	50-90	500-800	1/2	75	6-9
JSB800	730	2100	120-170	60-100	400-700	3/4	85	7-14
JSB900	970	2400	150-170	80-120	400-700	3/4	100	11-16
JSB1600	1950	2700	160-180	120-160	400-700	1	135	19-26
JSB1900	2050	2860	160-180	130-170	400-600	1	140	19-26
JSB3500	3000	3100	160-180	170-220	250-400	1	155	28-40
JSB4500	3300	3286	160-180	200-300	250-350	1 ¼	165	36-45
JSB5000	4250	3800	160-180	210-290	200-350	1 ¼	175	40-55
JSB5000	4900	3700	180-220	220-300	200-250	1 ¼	185	50-60
JSB6000	5400	4200	200-240	230-320	150-200	1 ¼	195	55-65
JSB6500	7400	4300	200-240	320-490	150-200	1 ¼	205	65-100

Feature Details

The JISAN excavator hydraulic breaker is a high-performance front-end attachment for excavators, featuring high strength, compact size, and powerful impact force. Designed for demanding applications including concrete demolition, mining operations, boulder breaking, bridge repair, and emergency rescue situations.

Our hydraulic breakers are suitable for carriers with operating weights ranging from 50kg to over 10,000kg, featuring advanced technologies including self-lubricating systems, sound/vibration damping, automatic rock hardness adjustment, and energy recovery systems.

Safety Operation Precautions

Apply proper positioning for effective breaking force - incorrect positioning reduces hammering efficiency
Avoid excessive positioning that may cause machine instability when rocks break
Do not hammer under conditions where vibrations may transmit to machine tracks
Align boom force with rod direction and maintain vertical hammering surface
Never use breaker rod to move rocks - use proper stone claws instead
Avoid using breaker to sweep debris as this accelerates wear
Do not operate with components submerged in water/mud without proper modifications
Prevent breaker from falling onto rocks to avoid damage
Avoid operating at full cylinder extension/retraction limits
Never use breaker or rods for lifting - lifting eyes are for maintenance only
Warm up machine properly before operation, especially in cold conditions
Stop operation if hoses show abnormal vibration
Avoid blank hammering which accelerates component wear
Operate at specified engine speed - excessive speed increases oil temperature
