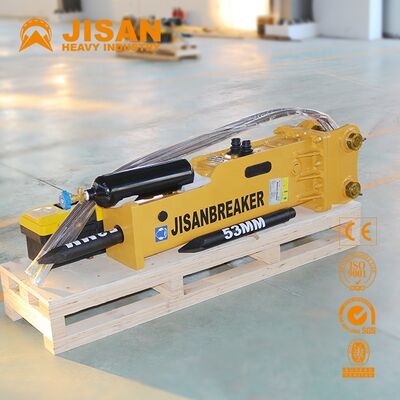

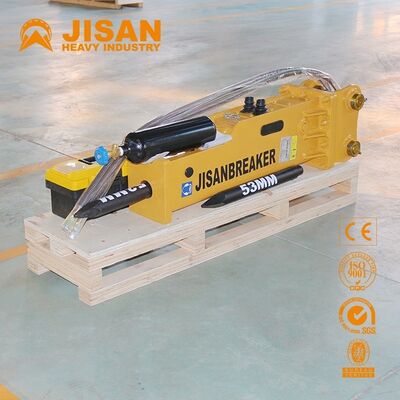

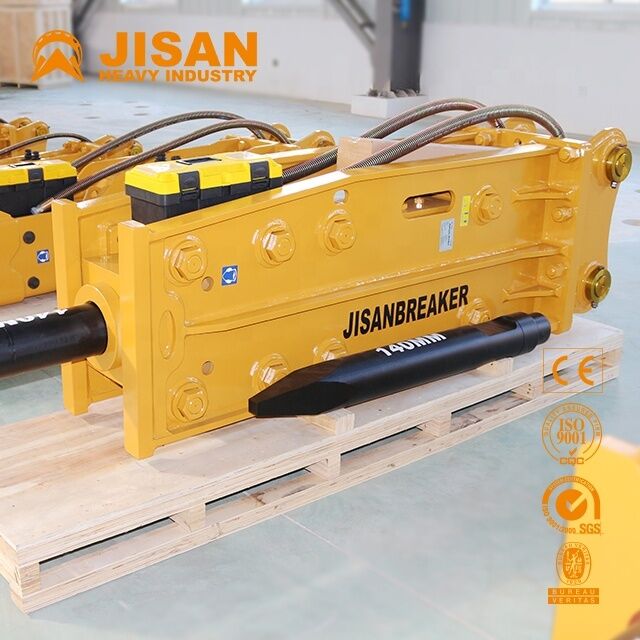

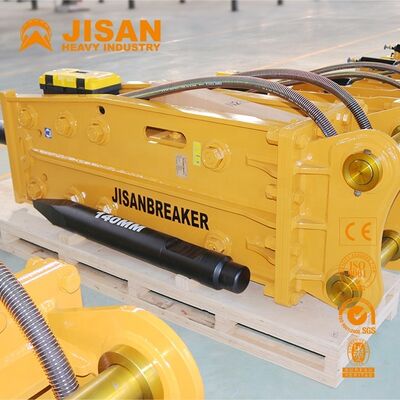

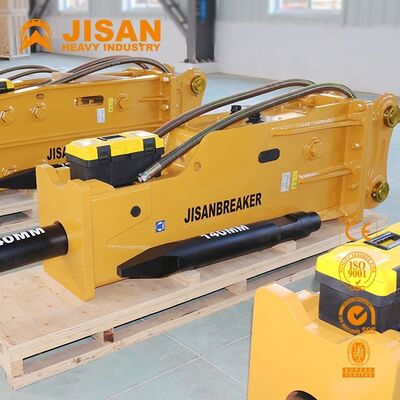

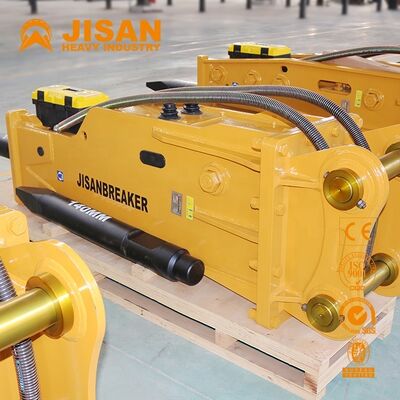

Doosan Excavator Jack Hammer
Product Parameters
| Item/Model |
Weight (kg) |
Length (mm) |
Pressure (bar) |
Flow (lpm) |
Rate (bmp) |
Hose (inch) |
Chisel (mm) |
Suit (ton) |
| JSB100 | 100 | 1000 | 90-120 | 15-25 | 900-1400 | 1/2 | 40 | 0.8-2.0 |
| JSB200 | 167 | 1300 | 90-120 | 20-40 | 700-1200 | 1/2 | 45 | 1.2-3.0 |
| JSB300 | 194 | 1400 | 90-120 | 25-50 | 600-1100 | 1/2 | 53 | 2.5-4.5 |
| JSB400 | 363 | 1700 | 110-140 | 40-70 | 500-900 | 1/2 | 68/70 | 4-7 |
| JSB600 | 450 | 1750 | 110-160 | 50-90 | 500-800 | 1/2 | 75 | 6-9 |
| JSB800 | 730 | 2100 | 120-170 | 60-100 | 400-700 | 3/4 | 85 | 7-14 |
| JSB900 | 970 | 2400 | 150-170 | 80-120 | 400-700 | 3/4 | 100 | 11-16 |
| JSB1600 | 1950 | 2700 | 160-180 | 120-160 | 400-700 | 1 | 135 | 19-26 |
| JSB1900 | 2050 | 2860 | 160-180 | 130-170 | 400-600 | 1 | 140 | 19-26 |
| JSB3500 | 3000 | 3100 | 160-180 | 170-220 | 250-400 | 1 | 155 | 28-40 |
| JSB4500 | 3300 | 3286 | 160-180 | 200-300 | 250-350 | 1 ¼ | 165 | 36-45 |
| JSB5000 | 4250 | 3800 | 160-180 | 210-290 | 200-350 | 1 ¼ | 175 | 40-55 |
| JSB5000 | 4900 | 3700 | 180-220 | 220-300 | 200-250 | 1 ¼ | 185 | 50-60 |
| JSB6000 | 5400 | 4200 | 200-240 | 230-320 | 150-200 | 1 ¼ | 195 | 55-65 |
| JSB6500 | 7400 | 4300 | 200-240 | 320-490 | 150-200 | 1 ¼ | 205 | 65-100 |
Feature Details
The excavator hydraulic breaker is a versatile front-end equipment accessory for excavators, featuring high strength, power efficiency, and compact design. This essential tool is widely used in:
- Concrete demolition and mining operations
- Boulder breaking and bridge repair
- Emergency rescue operations
- Construction demolition and reinforced concrete separation
- Trenching, foundation works, and asphalt cutting
Our hydraulic breakers are compatible with carriers of all types, ranging from 50kg to over 10,000kg. Advanced features include self-lubricating systems, vibration damping technology, automatic rock hardness adjustment, and energy recovery systems.
Safety Operation Guidelines
1. Proper Positioning: Ensure correct breaker position for effective force application. Incorrect positioning results in weak hammering energy.
2. Avoid Excessive Force: Over-extension may cause sudden forward tilting when rocks break, potentially damaging equipment.
3. Vibration Control: Avoid hammering conditions that transmit excessive vibrations to the carrier's tracks.
4. Correct Hammering Technique: Maintain vertical hammering surface alignment. Oblique surfaces may cause rod slippage and damage.
5. Proper Tool Usage: Never use the breaker rod to move rocks - use designated stone claws instead.
6. Avoid Debris Sweeping: Do not use the breaker to sweep ground debris as this accelerates wear.
7. Water Exposure: Avoid operating with components submerged in water/mud unless specially modified for underwater use.
8. Equipment Protection: Prevent the breaker from falling onto rocks to avoid impact damage.
9. Cylinder Limits: Never operate with carrier cylinders at full extension/retraction limits.
10. Lifting Restrictions: Breaker lifting eyes are for maintenance only - never use for load lifting.
11. Warm-up Procedure: Always warm up the machine for 5-10 minutes (30-40°C) before operation, especially in cold conditions.
12. Hose Inspection: Immediately stop operation if hoses show abnormal vibration and contact JISAN support.
13. Blank Hammering: Avoid prolonged blank hammering as it accelerates wear and may void warranties.
14. Optimal RPM: Operate at specified engine speeds - excessive RPM increases oil temperature without improving performance.
Our Advantages
- 12+ years as leading hydraulic breaker manufacturer with specialized R&D
- Global exports to 50+ countries including USA, Europe, and Middle East
- Premium Korean-made cylinders with NOK oil seals
- Low-noise, full-closed housing design for maximum protection
- Optimized impact force for extended service life
Applications
Product Packaging
Standard packaging includes:
- Inner stretch film with export wooden case
- Standard accessories: 2 chisels, 2 hoses, repair tool set, nitrogen bottle
Exhibition
JISAN has earned international recognition at trade exhibitions worldwide.
Certifications
Our products meet international standards with various patent certifications.
