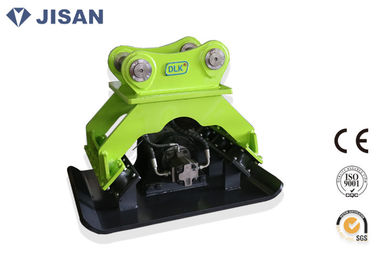

Customized Trench Hydraulic Plate Compactor For Excavator CAT320 CAT322
Quality Guarantee
1. Original Imported Motors to be more efficient and dense.
2. Original Imported Valves that are safe ,reliable and easy to control.
3. Damping Rubber, more durable.
4. Every Product will pass through ring upon ring of quality inspection before delivery to our customer.
5. Hydraulic compactor can fit for various kinds of excavators and skid loader varying from KOMATSU, CAT, HITACHI, KATO, DOOSAN, DAEWOO, JCB, OKB, NPK, MKB, LIUGONG, XCMG, LIEBHERR, HYUNDAI, SUMITOMO, KOBELCO, YANMAR, KUBOTA, IHISCE, TAKEUCHI etc.
Parameter
| Item/Model |
Unit |
JSC02 |
JSC03 |
JSC06 |
JSC08 |
JSC10 |
| Carrier |
Ton |
1-3 |
4-9 |
11-16 |
17-23 |
23-30 |
| Power of Impulse |
Ton |
3 |
5 |
10 |
15 |
15 |
| Maximum vibration frequency |
Rpm |
2000 |
2000 |
2000 |
2000 |
2000 |
| Oil Flow |
L/min |
30-45 |
45-75 |
85-105 |
120-170 |
120-170 |
| Pressure |
Kg/cm2 |
100-120 |
100-130 |
100-130 |
150-200 |
150-200 |
| Weight |
Kg |
260 |
300 |
500 |
900 |
950 |
| Bottom Measurement |
L*W*T,mm |
650*470*16 |
900*550*25 |
1160*700*28 |
1350*900*30 |
1350*900*30 |
| Height |
Mm |
690 |
760 |
920 |
1060 |
1100 |
| Width |
Mm |
470 |
550 |
700 |
900 |
900 |
Application
Applied to any position, such as horizon compaction, step compaction, bridge abutment , the trench pit compaction, sub grade compaction, the corner turning point, backfill compacted, concrete pavement patching compacted, tube side compaction etc.
FAQ
1. Are you sure that your product will fit my excavator?
Our plate compactor can be adapted to different excavators. Advise your excavator model, and we will suggest the suitable model for the excavator.
2. How about the delivery time ?
Within 10 working days after receiving T/T payment.
3. What color can you produce ?
Green or as customer's request.
4. What’s the Payment?
You can make payment by T/T,western union or L/C.
By bank transfer 30% payment depoist payment,we can make sea shipping to you. Against Bill of Loading, you pay rest 70%
