360 Degree Rotation All Directions Sorting Excavator Demolition Selection Grab

Certification
China JISAN HEAVY INDUSTRY LTD certification
China JISAN HEAVY INDUSTRY LTD certification
I'm Online Chat Now

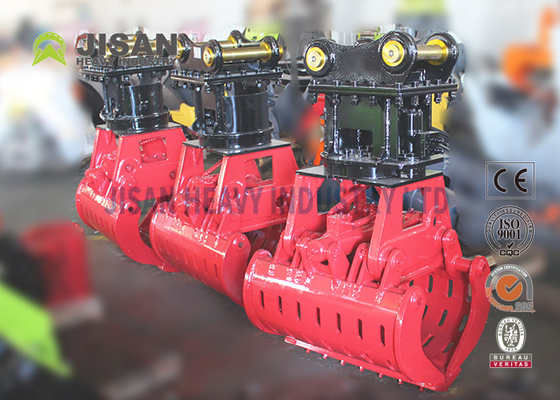

360 Degree Rotation All Directions Sorting Excavator Demolition Selection Grab

360 Degree Rotation All Directions Sorting Excavator Demolition Selection Grab
360 Degree Rotation All Directions Sorting Excavator Demolition Selection Grab 360 Degree Rotation All Directions Sorting Excavator Demolition Selection Grab 360 Degree Rotation All Directions Sorting Excavator Demolition Selection Grab 360 Degree Rotation All Directions Sorting Excavator Demolition Selection Grab 360 Degree Rotation All Directions Sorting Excavator Demolition Selection Grab 360 Degree Rotation All Directions Sorting Excavator Demolition Selection Grab 360 Degree Rotation All Directions Sorting Excavator Demolition Selection Grab 360 Degree Rotation All Directions Sorting Excavator Demolition Selection Grab

Large Image :  360 Degree Rotation All Directions Sorting Excavator Demolition Selection Grab

Product Details:
Place of Origin: China
Brand Name: JISAN
Certification: CE,ISO
Model Number: JSL04
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation ( EXW , FOB or CIF price )
Packaging Details: Export Wooden Cases or pallets
Delivery Time: 7-10 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40 Sets per month
Detailed Product Description
Application: Moving Volumes Of Material Opening Width: 1750 Mm
Suitable Excavator: 12-16 Ton Weight: 550 Kg
Color: Green Or As Request Warranty: 14 Months
High Light:

scrap grapple

,

hydraulic rotating grapple

,

Hydraulic Selecting Grapple 360 Degree

Live Countdown

  • 00

    days

  • .
  • 00

    hours

  • :
  • 00

    minutes

  • :
  • 00

    seconds



Whether taking down a building or sorting and loading material, it's designed to handle your demolition, and recycling needs. Capable of moving volumes of material, combined with the ability to sort and recover recyclables, this grapple will bring more economic benefits.

360 Degree Rotation All Directions Sorting Excavator Demolition Selection Grab 0



Applicable



1. It is suitable for ordinary house demolition, scrap steel dismantling, wood and garbage loading and unloading operations.

2. For simple brick-concrete demolition, various bulk and block material handling operations.



360 Degree Rotation All Directions Sorting Excavator Demolition Selection Grab 1





Features



1. Multi Function, especially suit for large volume material handling
2. Made from high strength steel, more durable
3. Maximized opening width to ensure the grab capacity
4. Special heat-treatment &long life
5. Hose guard, cylinder high pressure hose installed inside
6. Shock-absorption-Cushion Cylinder
7. Full 360 degree clockwise and anti-clockwise hydraulic rotation

8. The oil cylinder adopts honing tube, imported HALLITE oil seal, short working cycle and long life.

9. Rotary motor imported from switzerland.

10. Using q345 manganese plate steel, high strength and corrosion resistance.



360 Degree Rotation All Directions Sorting Excavator Demolition Selection Grab 2





Parameter



Model Unit JSL02 JSL04 JSL06 JSL08 JSL10 JSL14 JSL20
Weight Kg 200 390 740 1380 1700 1900 2100
Max Jaw Opening M/m 1000 1400 1800 2300 2500 2500 2700
Oil Pressure Kg/m² 110-140 120-160 150-170 160-180 160-180 180-200 180-200
Set Up Pressure Kg/m² 170 180 190 200 210 250 250
Operating Flux L/Min 30-55 50-100 90-110 100-140 130-170 200-250 250-320
Cylinder Volume Ton 4.0*2 4.5*2 8.0*2 9.7*2 12*2 12*2 14*2
Suitable excavator Ton 2-5 6-11 12-16 17-23 24-30 31-40 41-50

Height mm 1080 1585 2085 2200 2500 2800 3100
Width mm 780 900 1080 1100 1300 1450 1760
Tine Width mm 580 800 950 1100 1300 1430 1650



360 Degree Rotation All Directions Sorting Excavator Demolition Selection Grab 3

Working Scene



Our Demolition & Sorting Grapples are a great general purpose tool. They can be used to demolish buildings and handling all types of loose debris and lodged heavy material. They are adaptable to many industries including demolition, scrap and waste handling.



360 Degree Rotation All Directions Sorting Excavator Demolition Selection Grab 4





Product Inspection



1. Every Product will pass through ring upon ring of quality inspection before delivery to our customer.
2. We will do impact test for every product before delivery.



Company Profile



Jisan Heavy Industry Ltd. is a modernized manufacture enterprise located in Yantai city with an area of 6000 square meters workshop. Jisan is the leading designer, manufacturer and exporter for excavator attachments equipments in northern China. The company specializes two production lines professionally: Hydraulic breaker and excavator attachments.
The advantage products: Hydraulic Breaker, Hydraulic Quick Hitch, Hydraulic Rotating Grapple, Grab Bucket, Vibro Ripper, Plate Compactor, Heavy Duty Ripper, Crusher, Pile Hammer, Earth Auger, meanwhile also can customize special attachments according to customer's request, such as pallet fork, special thumbs, tilt bucket, tilt hitch etc.
