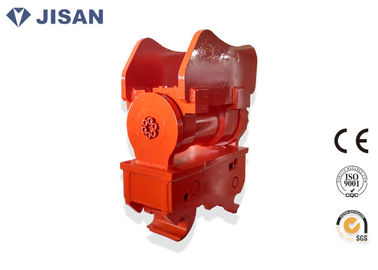

Hyundai Excavator Hydraulic Tilting Quick Hitch 60-70mm Pin Size High Efficiency

Hyundai Excavator Hydraulic Tilting Quick Hitch 60-70mm Pin Size High Efficiency
Hyundai Excavator Hydraulic Tilting Quick Hitch 60-70mm Pin Size High Efficiency

Large Image :  Hyundai Excavator Hydraulic Tilting Quick Hitch 60-70mm Pin Size High Efficiency

Product Details:
Place of Origin: China
Brand Name: JISAN
Certification: CE, ISO
Model Number: JS60
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation ( EXW , FOB or CIF price )
Packaging Details: Export Wooden Cases
Delivery Time: 10-15 Days After Receiving Payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 Sets per year
Detailed Product Description
Tilt Degree: 45 Degree Tilting Production Time: 10-14 Workdays
Color: Green Or As Request Cylinder: Self Made
Carrier: 9-17 Ton Excavator Customized: Available
High Light:

backhoe quick coupler

,

excavator quick hitch



Australia Used Hydraulic Tilt Quick Hitch Tilting Coupler For Hyundai Excavator




Applied to change excavator parts,like ripper,hydraulic hammer, grapples and so on, enlarge excavator working range, save time and improve efficiency.




Features

Convenient and Efficient


DLK quick hitch can be used on excavator to exchange accessories (such as breaker, ripper, compactor, grapple, shear, etc) easily and quickly, enlarging the use scope of excavator. Installing one quick hitch to
the excavator takes only 1 minute, enhancing the working efficiency of excavator.


Double Safety System


Check valve Protection System: each cylinder installed safety check valve ensures that quick hitch coupler can work when the circuit and oil circuit is cut off.


Safety Pin Protection System: security protection is customized for each excavator according to the different measurement. In the case of the failure of cylinder, quick hitch can work regularly.

Hyundai Excavator Hydraulic Tilting Quick Hitch 60-70mm Pin Size High Efficiency 0



Parameter



Model Unit JSMINI JS45 JS50 JS55 JS60 JS65 JS70 JS80 JS90 JS100 JS110
Overall Length Mm 388 534-545 600 765 924-944 983-1050 1006-1173
Overall Height Mm 246 307 310 388 492 574 558-610
Overall Width Mm 175 258-263 270-280 353-436 449-483 543-568 606-663
Pin to Pin Center Distance Mm 80-150 230-270 290-360 380-420 460-480 473-540 550-620
Forearm Open Width Mm 80-140 155-170 180-200 232-315 306-340 375-411 416-469
Retractable Distance of oil cylinder Mm 170-206 205-275 340-450 340-486 256-390 413-590 520-590
Top to Bottom Pin Distance Mm 159 195 195 220 275 300 360
Pin Diameter Mm 25-40 45-50 50-55 60-70 70-80 80-90 90-120
Weight Kg 25 50-60 80 120-130 280-290 420-430 450-580
Working Pressure Kg/c㎡ 40-380 40-380 40-380 40-380 40-380 40-380 40-380
Required Oil Flow L/min 10-20 10-20 10-20 10-20 10-20 10-20 10-20
Suitable Excavator Ton 1.5-4 4-7 5-8 9-19 17-23 23-30 33-45


Hyundai Excavator Hydraulic Tilting Quick Hitch 60-70mm Pin Size High Efficiency 1



Packing & Shipping

Package: Inner is stretch film, outside is export wooden case

Production Time: 3-5 Workdays after down payment

Delivery: We can arrange ocean or air transportation according to your request from any port of China.

Shipping term: EXW,FOB, CNF, CIF, DDU, DDP
Shipping port: Qingdao,Tianjin, Shanghai, Ningbo, etc.
