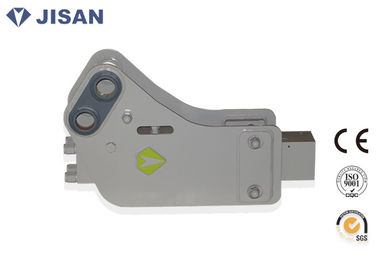

Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability

Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability

Large Image :  Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability

Product Details:
Place of Origin: China
Brand Name: JISAN
Certification: CE, ISO
Model Number: JSB400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation ( EXW , FOB or CIF price )
Packaging Details: Export Wooden Cases or pallets
Delivery Time: 7-10 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Sets per year
Detailed Product Description
Chisel Diameter: 68 Mm Carrier: Backhoe Loader Hydraulic Breaker
Certification: CE, ISO9001 Weight: 300 Kg
OEM: OEM Service Available Hose Diameter: 1/2 Inch
High Light:

excavator hydraulic breaker

,

excavator hydraulic hammer

Fine Hydraulic Excavator Rock Breaker Price For Backhoe Loader JCB 3CX 3DX

jisan hydraulic breaker 2022.pdf



Introduction



Hydraulic rock breaker is powered by an excavator or loader pump provides pressure oil, it can dig a fundamental role in building a more efficient clean up floating rock crevice in the rocks and soil. Optional hydraulic hammer excavator model is based on the principle of the operating environment to choose the most suitable hydraulic rock breaker
Hydraulic breaker has become an important tool for the job, it was installed in the hydraulic breaker backhoe loaders (also known as two busy) or wheel loader for crushing operations.

Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 0

Excavator hydraulic breaker is one of the new front-end equipment accessories of excavator, which is widely used. Excavator hydraulic breaker has the characteristics of high strength, high power, small size and humanized product. Because the excavator hydraulic breaker can quickly and effectively break concrete, mining, boulder breaking, bridge repair, earthquake rescue and other disasters, rescue trapped people, and play a role in rescue and disaster relief. Therefore, it is often used for demolition and rescue in various places, and is a commonly used crushing tool for fire brigade, traffic police, industrial and mining enterprises and other disaster relief and construction departments. It can also be used in construction demolition operations, reinforced concrete separation and other conditions. They have a wide range of applications such as demolition, deconstruction, primary rock excavation, secondary rock breaking, trenching, foundation works, asphalt cutting, etc. Our excavator hydraulic hammers are suitable for any type of carrier, with operating weights ranging from 50kg to over 10,000kg. The over-development of breakers has given rise to different levels of advancement, such as self-lubricating systems, sound and vibration damping systems, automatic rock hardness adjustment systems, energy recovery, solid concepts, and more.
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 1
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 2
Precautions for safe operation.
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 3
1.Proper position must be applied for an effective usage of breaking force. When position is incorrect,hammering energy of the piston is too weak to break rocks,
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 4
2.On the contrary,when position is excessive enough to break rocks with front of the base machine raised, the machine may suddenly tit forward the moment rocks are broken. Then, the breaker body or the end ofbracket may violently hit against rocks and result in damage.
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 5
3.lt is undesirable to carry out hammering under the below condition, because vibrations during hammering may be transmitted to tracks of the base machine. During hammering,however,proper position must be always applied to the breaker.Special care must be taken not to hammer under abnormal condition.
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 6
4.Apply same direction of boom force in line with the rod and place the rod in the rock with hammering surface as vertical as possible. lf hammering surface is oblique,the rod may slip during hammering. Thiscauses the rod to seize and to be broken and piston to be damaged. When breaking,fully stabilize therod first and then select the point of a rock on which hammering can be performed in a stable condition.
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 7
5.Do not use the breaker rod to move rocks. The stone claws are designed for this purposes.
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 8
6.Do not use the breaker to sweep the ground of debris. This may damage the breaker and the housing will wear out more quickly.
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 9
7.Do not operate breaker when all components except rod are immersed in water and mud. Underwater usage of the breaker will cause internal damage to the breaker. Consult jisan for modifications if you have an underwater requirement.
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 10
8.Do not allow the breaker to fall to a rock. Falling down the breaker will apply excessive force to the breaker or the carrier,causing damage to theparts of the breaker and carrier.
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 11
9.Do not operate the breaker with the carriers boom,stick or bucket cylinders at the end of their stroke (either fully extended or fully retracted). Damage to the carrier may result
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 12
10.Do not use the breaker or breaker rods for lifting. Lifting eyes on the breaker are for storage and maintenance purposes only.
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 13
11.Warm-up of machine prior to operation - Do not operate the machine right after starting the engine.ldle the machine for warm-up. Warm thehydraulic oil sufficiently especially in winter or in the cold place. - Especially in winter,the carrier's engine should be warmed up for 5 to 10 minutes 30~4O℃(86~105'F)before breaker operation. - When operating the hydraulic breaker,idle the engine and operate the hydraulic breaker with a light load.
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 13
12.Stop operation when hoses are vibrating abnormally. Check the hoses on the high pressure and low pressure sides of the breaker for abnormal vibration.lfthey are vibrating abnormally,contact the nearest jisan dealer.
13. Avoid blank hammering. Blank hammering accelerates wear and tear on breaker and carrier components and may result in failureof one or more components.Excessive blank hammering may be considered equipment abuse and mayresult in voiding warranties. In case of blank hammering,hammering sound changes.
14.Operate the breaker at proper engine speed. Break rocks at the specified engine speed. Raising engine speed more than necessary does notstrengthen hammering force but increase oil temperature to the detriment of piston and valve.
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 15
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 16
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 17
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 18
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 19
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 20
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 21
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 22

Description

1. Selected raw material – high quality heavy duty wear resistant steel
2. Hydraulic-gas system, increase stability
3. High-quality and durable wear parts
4. Advanced manufacturing facilities, introduced from Korea
5. High energy and impact frequency (high performance)
6. High-performance optimized hydraulic unit
7. Low maintenance, less breakdown, long using life
8. Fully enclosed housing with robust structure



Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 23



Specification



Model Unit JSB200 JSB300 JSB400 JSB600 JSB800 JSB900 JSB1600
Weight Kg 200 270 330 450 680 1000 2000
Length Mm 1344 1420 1590 1895 2101 2401 2822
Pressure Kg/m² 80-110 90-120 110-140 120-150 130-160 150-170 160-180
Flow L/Min 20-30 25-50 40-70 50-90 60-100 80-110 100-150
Rate Bpm 600-1200 550-1000 500-900 400-800 400-800 350-700 350-600
Hose Inch 1/2 1/2 1/2 1/2 3/4 3/4 1
Chisel Mm 45 53 68/70 75 85 100 135
Suit Ton 0.8-3.0 1.0-3.5 4-7 6-9 7-14 11-16 16-21



Model Unit JSB1900 JSB2800 JSB3500 JSB4500 JSB5000 JSB5500 JSB6500
Weight Kg 2050 2800 3100 3950 4200 4900 7100
Length Mm 2828 3052 3254 3450 3709 3800 4430
Pressure Kg/m² 160-180 160-180 160-180 160-180 160-180 160-180 190-210
Flow L/Min 120-180 150-210 180-240 200-260 210-290 250-310 290-370
Rate Bpm 350-500 300-450 300-450 250-400 200-350 250-320 200-400
Hose Inch 1 1 1.25 1.25 1.25 1.25 1.25
Chisel Mm 140 150 155 165 175 180 210
Suit Ton 18-26 25-30 28-45 30-45 40-55 44-70 65-100



Application



Excavator rock breaker can be widely used to breaking rock, paving road, building demolition,mining,dismantling engineering and special engineering etc.

Product packaging
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 28
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 29
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 30
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 31
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 32
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 33
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 34
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 35
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 36
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 37
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 38
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 39
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 40
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 41
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 42
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 43
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 44
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 45
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 46
Exhibition
JISAN winned well recognition by clients from different countries on exhibition.

Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 47

Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 48

Certifications
Various patent certificates
Backhoe Loader Excavator Hydraulic Breakers For Excavators JCB 3CX 3DX Mounted High Stability 49

FAQ



1. Are you a manufacture?
    Yes,our factory was established in 2009.



2. What’s the MOQ and payment ?
    MOQ is 1 set.
    T/T, L/C,west union is accepted. Other terms can also be negotiated.



3. How long is your delivery time?
     Generally it is 3-5 days if the goods are in stock.
     It is 7-15 days if the goods are not in stock, and it's according to quantity.



4. Can you produce according to customers' design?
    Sure,we are professional manufacturer,OEM is available.
