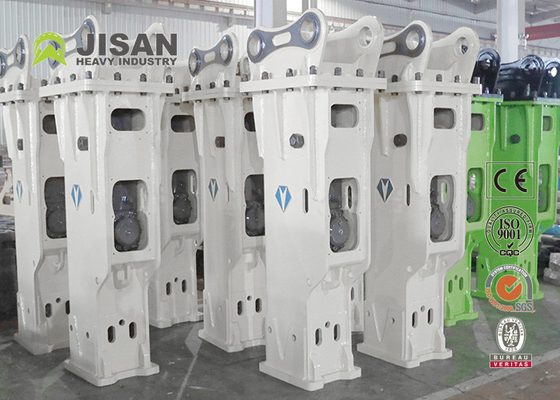

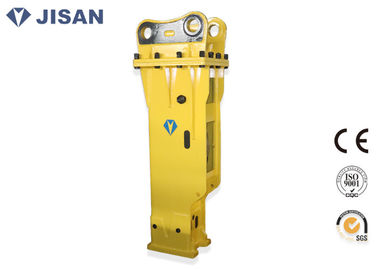

Kato 20Ton Excavator Rock Breaker Hammer 120-160 L/Min Oil Flow Heavy Duty

Certification
Good quality Hydraulic Rock Breaker for sales
Good quality Hydraulic Rock Breaker for sales
I'm Online Chat Now

Kato 20Ton Excavator Rock Breaker Hammer 120-160 L/Min Oil Flow Heavy Duty

China Kato 20Ton Excavator Rock Breaker Hammer 120-160 L/Min Oil Flow Heavy Duty supplier
Kato 20Ton Excavator Rock Breaker Hammer 120-160 L/Min Oil Flow Heavy Duty supplier Kato 20Ton Excavator Rock Breaker Hammer 120-160 L/Min Oil Flow Heavy Duty supplier

Large Image :  Kato 20Ton Excavator Rock Breaker Hammer 120-160 L/Min Oil Flow Heavy Duty

Product Details:

Place of Origin: YANTAI,CHINA
Brand Name: JISAN
Certification: CE, ISO
Model Number: JSB1600

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation ( EXW , FOB or CIF price )
Packaging Details: Export Wooden Cases or Pallets
Delivery Time: 7-10 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Sets per year
Contact Now
Detailed Product Description
Working Flow: 120-160 L/Min Condition: New
Certification: CE, ISO9001 Hose Diameter: 1 Inch
Chisel Type: Moil, Wedge, Flat, Blunt, Conical Type Chisel Main Body Material: 20 Crmo



Hydraulic Hammer Rock Breaker Demolition Machine For Kato 20 Ton Excavator




Description

1. Supplied ready to use with hydraulic hoses, tool, N2 gas charging kit
2. Easy fitment onto any kinds of excavators
3. Durable body incorporating heavy duty rock claws
4. Perfectly matched tool and piston ensure maximum energy transfer to the material being broken
5. The hydraulic accumulator gives greater acceleration in the power stroke and reduces pressure peaks in the carrier hydraulic system.





How to choose hydraulic breaker type?



Side type hydraulic breaker has the advantage of convenient maintenance and flexible operation, it's     the first choice for mining and quarrying.


Top type hydraulic breaker is applied to special operation that in larger elevation angle at municipal project dismantling.


Silence type hydraulic breaker is fully compliance with international environmental standards,it can adapt to the urban demolition work and tunnel construction.



Kato 20Ton Excavator Rock Breaker Hammer 120-160 L/Min Oil Flow Heavy Duty



Specification



Model Weight  (Kg) Length (Mm) Pressure (kg/cm2) Flux (L/Min) Rate (Bpm) Hose (Inch) Chisel (Mm) Suit    (Ton)
JSB200 100/120 1100 90-120 15-25 700-1200 1/2 45/53 1.2-3.0
JSB400 298 1347 110-140 25-45 500-900 1/2 68/70 3.0-5.5
JSB600 421 1528 110-160 30-45 500-800 1/2 75 4.0-7.0
JSB800 577 1920 120-170 45-85 400-700 3/4 85 7.0-14
JSB900 973 2260 150-170 80-120 400-700 3/4 100 11-16
JSB1600 1855 2695 160-180 120-160 400-700 1 135 19-26
JSB1900 1989 2810 160-180 130-170 400-600 1 140 19-26
JSB2800 2420 2895 160-180 150-190 350-500 1 150 27-38
JSB3500 2750 3152 160-180 170-220 250-400 1 155 28-40
JSB4500 3160 3310 160-180 200-300 250-350 1.25 165 36-45
JSB5000 4210 3400 160-180 210-290 200-350 1.25 175 40-55
JSB5500 4720 3400 180-220 220-300 200-250 1.25 185 50-60
JSB6000 4910 3420 180-220 230-320 180-200 1.25 190 55-65
JSB6500 6100 3700 190-230 360-450 120-200 1.25 210 65-100




Application

1. mining—mining, second-time breaking
2. metallurgy—clearing slag, demolition of furnace and foundation
3. road—repairing, breaking, foundation work
4. railway—tunneling, demolition of bridge
5. construction—demolition of bulinding and reinforced concrete
6. ship repairing—clearing clam and rust from the hull
7. others—breaking frozen mud


Kato 20Ton Excavator Rock Breaker Hammer 120-160 L/Min Oil Flow Heavy Duty

Certification

Jisan Heavy Industry Ltd is a leading manufacture of hydraulic breaker and excavator attachments. The main products have passed CE and ISO9001 certification. We have already established over 120 agencies in the world. As one of the largest excavator attachments manufacture in China, we can supply all kinds of attachments to satisfy clients different demand.

Sincerely welcome friends to join us for long term co-operation.
