No Vibration Hydraulic Concrete Pulverizer , Volvo EC210 Concrete Crusher Attachment For Excavator

Certification
Good quality Hydraulic Rock Breaker for sales
Good quality Hydraulic Rock Breaker for sales
I'm Online Chat Now

No Vibration Hydraulic Concrete Pulverizer , Volvo EC210 Concrete Crusher Attachment For Excavator

China No Vibration Hydraulic Concrete Pulverizer , Volvo EC210 Concrete Crusher Attachment For Excavator supplier
No Vibration Hydraulic Concrete Pulverizer , Volvo EC210 Concrete Crusher Attachment For Excavator supplier No Vibration Hydraulic Concrete Pulverizer , Volvo EC210 Concrete Crusher Attachment For Excavator supplier

Large Image :  No Vibration Hydraulic Concrete Pulverizer , Volvo EC210 Concrete Crusher Attachment For Excavator

Product Details:

Place of Origin: CHINA
Brand Name: JISAN
Certification: CE,ISO
Model Number: JS20S

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation ( EXW , FOB or CIF price )
Packaging Details: Export Wooden Cases
Delivery Time: 7-10 Workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Sets per month
Contact Now
Detailed Product Description
Speed Valve: Yes Warranty: 14 Months
Heat Treatment: Yes Material: Q345B, NM400
Weight: 1800 Kg Color: Yellow Or As Request



Volvo EC210 Excavator Hydraulic Concrete Pulverizer Secondary Demolition Tools





Introduction



Low noise, no vibration, meet the requirements of environmental protection, which are suitable for city and high-tech zone demolition project.

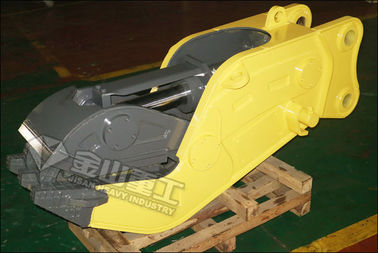

Hydraulic pulverizer is composed with body, hydraulic cylinder, movable jaw and fixed jaw. The external hydraulic system offer hydraulic pressure for the hydraulic cylinder to make the movable jaw and fixed jaw open and close to achieve the effect of crushing objects.



No Vibration Hydraulic Concrete Pulverizer , Volvo EC210 Concrete Crusher Attachment For Excavator





Features



1. Large bore dual cylinders: Strong power and excellent durability, reverse design to protect cylinder
2. Speed up valve: Fast cycle time
3. Lighter and stronger structure: High tensile special steel plate.
4. 360 degree hydraulic rotation optional
5. Working efficiency is two or three times of hydraulic breaker
6. Large opening design,working easily and conveniently.
7. Equipped with steel bar cutter, fufill crushing and cutting off exposed reinforced steel at same time
8. Low noise, can be used for city and high-tech zone demolition project





Parameter



Item/Model Unit JS15S JS20S JS25S
Suitable Excavator T 15 18-24 35
Weight Kg 1320 1500 1750
Opening Width Mm 620 760 900
Depth Mm 700 830 1000
Height Mm 2060 2250 2620
Width Mm 450 530 620
Length Mm 1050 1340 1580
Rated Pressure Kgf/cm2 320 320 320
Rated Flow Lpm 230 240 260
Crushing Force Middle Ton 80 95 120
Tip Ton 40 50 65
Cycle Time Open Sec 2 2.5 2.8
Close Sec 2.1 2.2 2.5



No Vibration Hydraulic Concrete Pulverizer , Volvo EC210 Concrete Crusher Attachment For Excavator





Application



· Apartment building, Workshop beams, Houses and other buildings demolition
· Steel recycling
· Concrete crushing





Package



Inner is stretch film, outside is export wooden case or as customer’s request


Delivery



1. Delivery time: Usually 5-7days (1-5sets) after down payment.
2. We can arrange ocean or air transportation according to your request from any port of China.





Company Introduction



JISAN is one of the largest and most professional excavator attachment manufacturer with ten years experience. Our products have been exported to many countries in the world including India,Saudi Arabia, Iran, Brazil, Australia, New Zealand, Southeast Asia, USA and France etc.
With advanced imported CNC Center and strict quality control management, our products have been approved by ISO, CE authority.





Service



1.7Days*24Hours after-sales service by email and phone
2.Your inquiry will be replied in 24 hours during workdays
3.Our customer-oriented sales and technical team are always at your service
4.OEM Service available
5.Warranty: 14 months warranty for hydraulic pulverizer, beyond the warranty period, all spare parts offered to you with our cost price.
