|Material:||Q345B Steel||Warranty:||14 Months|
|Color:||Green Or As Request||Weight:||280 Kg|
|Pin Diameter:||70-80 Mm||Customized:||Available|
hydraulic quick hitch,
backhoe quick coupler

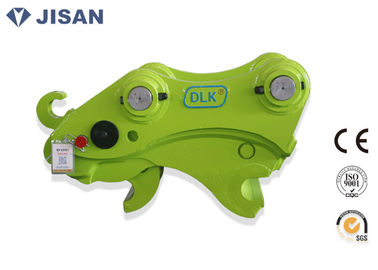

Excavator Attachments Hydraulic Quick Coupler For Komatsu PC200 PC210 PC220
Convenient and Efficient
DLK quick hitch can be used on excavator to exchange accessories (such as breaker, ripper, compactor, grapple, shear, etc) easily and quickly, enlarging the use scope of excavator. Installing one quick hitch to
the excavator takes only 1 minute, enhancing the working efficiency of excavator.
Double Safety System
Check valve Protection System: each cylinder installed safety check valve ensures that quick hitch coupler can work when the circuit and oil circuit is cut off.
Safety Pin Protection System: security protection is customized for each excavator according to the different measurement. In the case of the failure of cylinder, quick hitch can work regularly.
|Model||Unit||JSMINI||JS45||JS50 JS55||JS60 JS65||JS70 JS80||JS90||JS100 JS110|
|Pin to Pin Center Distance||Mm||80-150||230-270||290-360||380-420||460-480||473-540||550-620|
|Forearm Open Width||Mm||80-140||155-170||180-200||232-315||306-340||375-411||416-469|
|Retractable Distance of oil cylinder||Mm||170-206||205-275||340-450||340-486||256-390||413-590||520-590|
|Top to Bottom Pin Distance||Mm||159||195||195||220||275||300||360|
|Required Oil Flow||L/min||10-20||10-20||10-20||10-20||10-20||10-20||10-20|
Packing & Shipping
Package: Inner is stretch film, outside is export wooden case
Production Time: 3-5 Workdays after down payment
Delivery: We can arrange ocean or air transportation according to your request from any port of China.
Shipping term: EXW,FOB, CNF, CIF, DDU, DDP
Shipping port: Qingdao,Tianjin, Shanghai, Ningbo, etc.
JISAN is one of the largest and most professional excavator attachment manufacturer with ten years experience. Our products have been exported to many countries in the world including India,Saudi Arabia, Iran, Brazil, Australia, New Zealand, Southeast Asia, USA and France etc.
With advanced imported CNC Center and strict quality control management, our products have been approved by ISO, CE authority.
